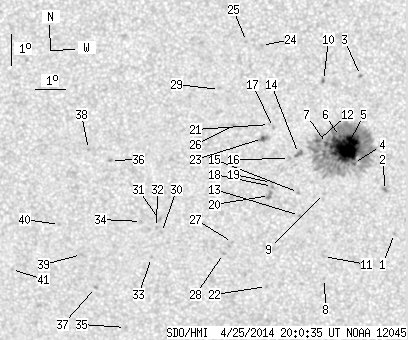

SDO HMI 2014-04-25 20:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 58.94 | 301.15 | 30.86 | 157.99 | -23.76 | 115.79 | -0.30 | 179.32 | 0.3290 | 417.0 | 267.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-25 20:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.07 | 0.00 | 0.57 | -26.31 | 118.07 | 1.98 | 184.80 | 0.3712 | 889.0 | 695.9 | |
| 0.00 | 1.96 | 0.00 | 1.03 | -24.93 | 117.75 | 1.66 | 184.33 | 0.3482 | 949.0 | 798.1 | |
| 0.00 | 1.42 | 0.00 | 0.74 | -21.27 | 116.90 | 0.81 | 182.63 | 0.2867 | -922.0 | -761.0 | |
| 0.62 | 247.53 | 0.33 | 129.64 | -24.06 | 116.68 | 0.59 | 181.62 | 0.3330 | 636.0 | 411.5 | |
| 53.52 | -4.00 | 28.02 | -4.00 | -23.55 | 116.45 | 0.36 | 181.01 | 0.3245 | 1295.0 | 999999 | |
| 1.60 | -4.00 | 0.84 | -4.00 | -23.20 | 116.22 | 0.13 | 180.37 | 0.3186 | 1102.7 | 999999 | |
| 1.24 | -4.00 | 0.65 | -4.00 | -23.42 | 115.79 | -0.30 | 179.14 | 0.3223 | 954.1 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.38 | -27.78 | 115.71 | -0.39 | 179.13 | 0.3937 | 718.0 | 489.8 | |
| 0.00 | 1.33 | 0.00 | 0.70 | -25.02 | 115.72 | -0.37 | 179.03 | 0.3488 | 516.0 | 419.5 | |
| 0.00 | 1.42 | 0.00 | 0.74 | -21.43 | 115.70 | -0.39 | 178.74 | 0.2891 | -1050.0 | -847.1 | |
| 0.00 | 1.42 | 0.00 | 0.76 | -27.06 | 115.68 | -0.42 | 179.03 | 0.3821 | 668.0 | 512.5 | |
| 0.89 | -4.00 | 0.46 | -4.00 | -23.32 | 115.50 | -0.60 | 178.29 | 0.3209 | 710.6 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.52 | -25.73 | 114.88 | -1.21 | 176.96 | 0.3608 | -677.0 | -612.9 | |
| 0.00 | 4.09 | 0.00 | 2.14 | -23.74 | 114.87 | -1.22 | 176.57 | 0.3282 | 1001.0 | 732.5 | |
| 0.00 | 1.16 | 0.00 | 0.61 | -24.99 | 114.85 | -1.24 | 176.77 | 0.3487 | 712.0 | 564.1 | |
| 0.00 | 2.04 | 0.00 | 1.07 | -23.90 | 114.57 | -1.52 | 175.77 | 0.3311 | 575.0 | 438.9 | |
| 0.00 | 1.60 | 0.00 | 0.84 | -22.91 | 114.06 | -2.03 | 174.03 | 0.3155 | -376.0 | -243.3 | |
| 0.00 | 0.98 | 0.00 | 0.52 | -24.79 | 113.99 | -2.10 | 174.47 | 0.3466 | -871.0 | -744.3 | |
| 0.00 | 1.16 | 0.00 | 0.61 | -24.66 | 113.96 | -2.13 | 174.35 | 0.3446 | -980.0 | -711.6 | |
| 0.00 | 4.09 | 0.00 | 2.16 | -25.08 | 113.89 | -2.20 | 174.29 | 0.3515 | -1045.0 | -782.8 | |
| 0.00 | 0.98 | 0.00 | 0.51 | -22.81 | 113.93 | -2.16 | 173.61 | 0.3142 | -673.0 | -481.2 | |
| 0.00 | 1.07 | 0.00 | 0.58 | -28.04 | 113.72 | -2.37 | 174.74 | 0.3995 | 788.0 | 617.8 | |
| 1.07 | 5.42 | 0.56 | 2.84 | -23.26 | 113.69 | -2.40 | 173.10 | 0.3220 | -1013.5 | -745.0 | |
| 0.00 | 1.07 | 0.00 | 0.55 | -20.32 | 113.71 | -2.38 | 171.77 | 0.2733 | -881.0 | -695.7 | |
| 0.00 | 1.16 | 0.00 | 0.59 | -20.19 | 113.23 | -2.86 | 170.06 | 0.2724 | -772.0 | -616.0 | |
| 0.00 | 1.24 | 0.00 | 0.65 | -22.84 | 112.75 | -3.34 | 170.21 | 0.3174 | -910.0 | -703.9 | |
| 0.00 | 1.07 | 0.00 | 0.57 | -26.59 | 112.61 | -3.48 | 171.71 | 0.3785 | 798.0 | 593.3 | |
| 0.00 | 1.24 | 0.00 | 0.67 | -26.95 | 112.29 | -3.80 | 171.13 | 0.3850 | 664.0 | 567.1 | |
| 0.00 | 0.80 | 0.00 | 0.42 | -21.70 | 112.32 | -3.77 | 168.20 | 0.3000 | -576.0 | -586.0 | |
| 0.00 | 1.07 | 0.00 | 0.57 | -26.25 | 110.22 | -5.87 | 165.99 | 0.3805 | -814.0 | -659.0 | |
| 0.00 | 2.04 | 0.00 | 1.09 | -25.83 | 110.18 | -5.91 | 165.58 | 0.3741 | -889.0 | -736.8 | |
| 0.00 | 1.33 | 0.00 | 0.71 | -26.09 | 110.06 | -6.03 | 165.51 | 0.3786 | -961.0 | -739.3 | |
| 0.00 | 0.98 | 0.00 | 0.53 | -27.06 | 109.84 | -6.25 | 165.71 | 0.3946 | -758.0 | -591.5 | |
| 0.00 | 1.07 | 0.00 | 0.57 | -25.89 | 109.57 | -6.52 | 164.23 | 0.3776 | -798.0 | -598.4 | |
| 0.00 | 1.24 | 0.00 | 0.68 | -29.36 | 108.79 | -7.30 | 165.15 | 0.4339 | -768.0 | -579.4 | |
| 0.00 | 1.33 | 0.00 | 0.71 | -23.92 | 108.64 | -7.45 | 160.23 | 0.3519 | -883.0 | -776.8 | |
| 0.00 | 0.98 | 0.00 | 0.53 | -28.02 | 107.85 | -8.24 | 162.31 | 0.4180 | -826.0 | -703.7 | |
| 0.00 | 1.07 | 0.00 | 0.56 | -23.56 | 107.93 | -8.16 | 158.12 | 0.3506 | -833.0 | -688.9 | |
| 0.00 | 0.89 | 0.00 | 0.48 | -26.94 | 107.46 | -8.63 | 160.56 | 0.4038 | -733.0 | -615.9 | |
| 0.00 | 1.16 | 0.00 | 0.62 | -25.95 | 106.79 | -9.30 | 158.20 | 0.3931 | -891.0 | -659.3 | |
| 0.00 | 0.98 | 0.00 | 0.53 | -27.39 | 105.01 | -11.08 | 156.20 | 0.4248 | -241.0 | -134.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
