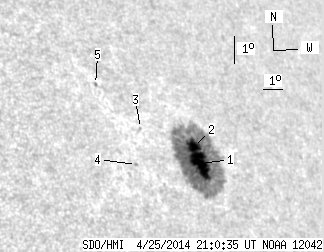

SDO HMI 2014-04-25 21:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.68 | 243.63 | 36.70 | 209.34 | 18.20 | 166.03 | 50.50 | 296.22 | 0.8191 | -789.1 | -262.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-25 21:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.68 | 239.99 | 26.36 | 206.39 | 18.04 | 166.11 | 50.58 | 295.99 | 0.8193 | -908.4 | -273.3 | |
| 12.00 | -1.00 | 10.34 | -1.00 | 18.58 | 165.98 | 50.45 | 296.67 | 0.8200 | -826.5 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.88 | 19.02 | 163.56 | 48.02 | 298.18 | 0.7996 | 408.0 | 372.6 | |
| 0.00 | 1.24 | 0.00 | 1.00 | 17.80 | 162.92 | 47.38 | 297.04 | 0.7889 | 456.0 | 313.4 | |
| 0.00 | 1.33 | 0.00 | 1.07 | 20.36 | 161.95 | 46.41 | 300.49 | 0.7903 | 301.0 | 342.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
