SDO HMI 2014-04-25 21:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.04 | 0.00 | 5.61 | -12.82 | 141.10 | 25.56 | 249.02 | 0.4521 | 577.4 | 460.3 | |
|
previous
or next observation for the same group /

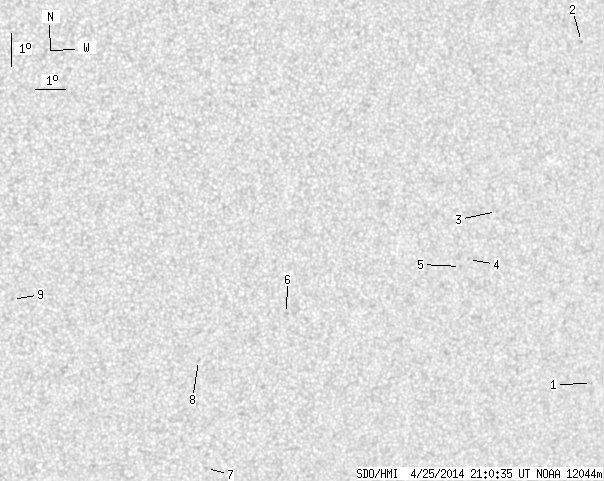

back to the solar disc SDO HMI 2014-04-25 21:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.98 | 0.00 | 0.60 | -14.91 | 150.14 | 34.60 | 250.79 | 0.5833 | 606.0 | 472.9 | |
| 0.00 | 0.89 | 0.00 | 0.52 | -4.58 | 148.59 | 33.05 | 268.83 | 0.5458 | 666.0 | 597.3 | |
| 0.00 | 0.71 | 0.00 | 0.41 | -9.83 | 145.94 | 30.41 | 258.60 | 0.5108 | 573.0 | 407.9 | |
| 0.00 | 0.80 | 0.00 | 0.46 | -11.33 | 145.11 | 29.57 | 255.43 | 0.5020 | 640.0 | 495.4 | |
| 0.00 | 1.16 | 0.00 | 0.66 | -11.55 | 144.85 | 29.32 | 254.89 | 0.4989 | 490.0 | 378.2 | |
| 0.00 | 1.51 | 0.00 | 0.82 | -13.18 | 139.02 | 23.48 | 248.34 | 0.4192 | 764.0 | 602.9 | |
| 0.00 | 1.42 | 0.00 | 0.78 | -18.02 | 136.86 | 21.32 | 235.73 | 0.4202 | 101.0 | 144.1 | |
| 0.00 | 1.33 | 0.00 | 0.72 | -14.70 | 136.22 | 20.68 | 242.38 | 0.3872 | 639.0 | 583.3 | |
| 0.00 | 1.24 | 0.00 | 0.64 | -12.98 | 130.02 | 14.49 | 238.99 | 0.2857 | 718.0 | 491.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
