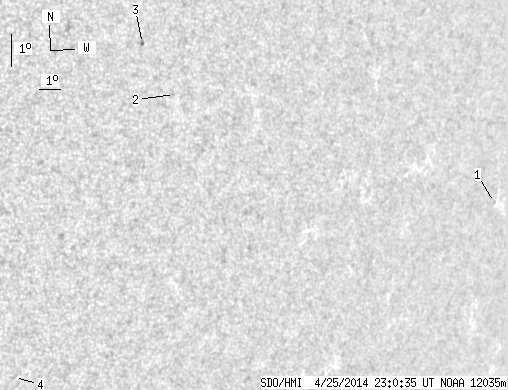

SDO HMI 2014-04-25 23:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.98 | 0.00 | 3.76 | -12.26 | 162.73 | 48.30 | 257.34 | 0.7423 | -515.0 | -437.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-25 23:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.07 | 0.00 | 1.12 | -12.06 | 176.57 | 62.14 | 258.83 | 0.8832 | -308.0 | -296.6 | |
| 0.00 | 0.62 | 0.00 | 0.43 | -9.86 | 159.30 | 44.87 | 260.73 | 0.7066 | -525.0 | -489.7 | |
| 0.00 | 1.87 | 0.00 | 1.27 | -8.40 | 157.71 | 43.28 | 262.72 | 0.6860 | -722.0 | -599.2 | |
| 0.00 | 1.42 | 0.00 | 0.94 | -18.83 | 154.60 | 40.17 | 246.74 | 0.6668 | -505.0 | -362.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
