SDO HMI 2014-04-25 23:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.34 | 283.19 | 28.46 | 148.56 | -23.70 | 115.89 | 1.45 | 184.25 | 0.3291 | 502.4 | 318.3 | |
|
previous
or next observation for the same group /

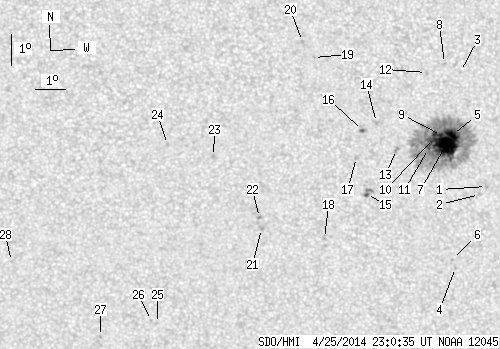

back to the solar disc SDO HMI 2014-04-25 23:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.42 | 0.00 | 0.75 | -24.95 | 117.78 | 3.35 | 188.71 | 0.3518 | 865.0 | 725.2 | |
| 0.00 | 1.25 | 0.00 | 0.66 | -25.20 | 117.56 | 3.13 | 188.02 | 0.3555 | 659.0 | 555.6 | |
| 0.00 | 1.16 | 0.00 | 0.60 | -21.29 | 116.86 | 2.43 | 187.86 | 0.2897 | -654.0 | -593.8 | |
| 0.00 | 1.16 | 0.00 | 0.62 | -27.58 | 116.80 | 2.37 | 185.39 | 0.3923 | 680.0 | 570.4 | |
| 9.96 | 246.81 | 5.21 | 129.30 | -23.29 | 116.63 | 2.19 | 186.30 | 0.3222 | 1455.2 | 428.2 | |
| 0.00 | 1.16 | 0.00 | 0.62 | -27.32 | 116.69 | 2.26 | 185.21 | 0.3880 | 799.0 | 594.2 | |
| 33.80 | -5.00 | 17.71 | -5.00 | -23.64 | 116.40 | 1.97 | 185.54 | 0.3276 | 1222.7 | 999999 | |
| 0.00 | 1.33 | 0.00 | 0.69 | -21.04 | 116.33 | 1.90 | 186.29 | 0.2844 | -754.0 | -609.9 | |
| 2.13 | -5.00 | 1.12 | -5.00 | -23.32 | 116.26 | 1.83 | 185.26 | 0.3221 | 1280.0 | 999999 | |
| 6.58 | -5.00 | 3.44 | -5.00 | -23.41 | 116.00 | 1.57 | 184.49 | 0.3234 | 1056.6 | 999999 | |
| 0.27 | -5.00 | 0.14 | -5.00 | -23.73 | 115.84 | 1.41 | 183.95 | 0.3284 | 860.3 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.51 | -21.32 | 115.76 | 1.32 | 184.30 | 0.2883 | -965.0 | -817.1 | |
| 0.00 | 3.11 | 0.00 | 1.63 | -23.76 | 114.79 | 0.36 | 181.00 | 0.3282 | 838.0 | 660.1 | |
| 0.00 | 1.51 | 0.00 | 0.79 | -22.90 | 114.13 | -0.30 | 179.12 | 0.3139 | 7.0 | -13.3 | |
| 0.89 | 6.05 | 0.47 | 3.20 | -25.21 | 113.79 | -0.64 | 178.35 | 0.3521 | -862.3 | -781.2 | |
| 0.71 | 1.87 | 0.37 | 0.98 | -23.16 | 113.67 | -0.76 | 177.80 | 0.3183 | -919.6 | -790.8 | |
| 0.00 | 1.51 | 0.00 | 0.79 | -24.02 | 113.47 | -0.96 | 177.34 | 0.3327 | -724.0 | -582.2 | |
| 0.00 | 1.51 | 0.00 | 0.81 | -26.63 | 112.36 | -2.07 | 175.07 | 0.3766 | 705.0 | 546.3 | |
| 0.00 | 0.98 | 0.00 | 0.50 | -20.85 | 112.10 | -2.33 | 172.24 | 0.2821 | -714.0 | -524.5 | |
| 0.00 | 1.16 | 0.00 | 0.60 | -20.34 | 111.76 | -2.67 | 170.80 | 0.2745 | -931.0 | -785.6 | |
| 0.00 | 2.13 | 0.00 | 1.14 | -26.29 | 110.25 | -4.18 | 169.93 | 0.3756 | -832.0 | -645.5 | |
| 0.00 | 1.33 | 0.00 | 0.71 | -25.93 | 110.19 | -4.24 | 169.61 | 0.3701 | -947.0 | -783.4 | |
| 0.00 | 1.51 | 0.00 | 0.80 | -23.96 | 108.74 | -5.69 | 164.66 | 0.3440 | -842.0 | -662.9 | |
| 0.00 | 1.42 | 0.00 | 0.75 | -23.56 | 107.23 | -7.20 | 160.48 | 0.3452 | -791.0 | -618.6 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -29.37 | 106.50 | -7.93 | 163.96 | 0.4370 | -666.0 | -536.2 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -29.27 | 106.30 | -8.13 | 163.51 | 0.4364 | -778.0 | -589.4 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -29.78 | 104.46 | -9.97 | 160.53 | 0.4527 | -660.0 | -567.0 | |
| 0.00 | 0.71 | 0.00 | 0.39 | -27.26 | 101.62 | -12.81 | 152.93 | 0.4348 | -698.0 | -545.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
