SDO HMI 2014-04-26 01:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.12 | 228.37 | 32.66 | 206.24 | 18.23 | 165.97 | 52.65 | 295.41 | 0.8381 | -654.8 | -252.7 | |
|
previous
or next observation for the same group /

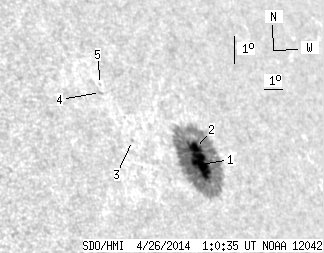

back to the solar disc SDO HMI 2014-04-26 01:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.60 | 224.99 | 24.03 | 203.40 | 18.07 | 166.03 | 52.71 | 295.21 | 0.8381 | -779.6 | -263.0 | |
| 9.52 | -1.00 | 8.63 | -1.00 | 18.58 | 166.00 | 52.67 | 295.81 | 0.8394 | -679.0 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.83 | 18.64 | 162.81 | 49.48 | 297.11 | 0.8115 | 400.0 | 318.0 | |
| 0.00 | 1.42 | 0.00 | 1.19 | 20.15 | 161.86 | 48.54 | 299.26 | 0.8086 | 502.0 | 429.1 | |
| 0.00 | 0.98 | 0.00 | 0.82 | 20.42 | 161.98 | 48.65 | 299.52 | 0.8106 | 341.0 | 317.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
