SDO HMI 2014-04-26 02:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59.88 | 306.62 | 31.41 | 161.00 | -23.70 | 115.88 | 3.11 | 188.71 | 0.3322 | 525.7 | 293.9 | |
|
previous
or next observation for the same group /

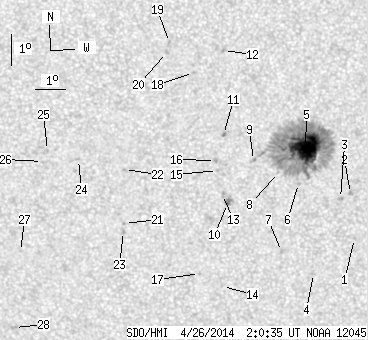

back to the solar disc SDO HMI 2014-04-26 02:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.80 | 0.00 | 0.43 | -26.45 | 118.06 | 5.28 | 192.52 | 0.3819 | 703.0 | 520.3 | |
| 0.00 | 2.22 | 0.00 | 1.18 | -24.99 | 117.86 | 5.09 | 193.02 | 0.3582 | 843.0 | 688.4 | |
| 0.00 | 2.67 | 0.00 | 1.42 | -25.16 | 117.53 | 4.76 | 192.11 | 0.3596 | 706.0 | 643.2 | |
| 0.00 | 1.87 | 0.00 | 1.01 | -27.60 | 116.71 | 3.94 | 188.88 | 0.3960 | 603.0 | 594.4 | |
| 59.26 | 264.80 | 31.08 | 138.87 | -23.53 | 116.32 | 3.55 | 189.95 | 0.3296 | 1218.1 | 398.6 | |
| 0.00 | 1.25 | 0.00 | 0.66 | -24.68 | 116.12 | 3.34 | 188.80 | 0.3478 | 499.0 | 376.8 | |
| 0.00 | 1.33 | 0.00 | 0.71 | -26.88 | 115.60 | 2.83 | 186.64 | 0.3822 | 687.0 | 606.3 | |
| 0.00 | 0.98 | 0.00 | 0.52 | -24.33 | 115.45 | 2.67 | 187.20 | 0.3405 | 601.0 | 397.7 | |
| 0.00 | 1.96 | 0.00 | 1.03 | -23.95 | 114.61 | 1.84 | 185.08 | 0.3328 | 649.0 | 527.7 | |
| 0.62 | 4.98 | 0.33 | 2.64 | -25.33 | 113.76 | 0.99 | 182.53 | 0.3545 | -890.7 | -808.9 | |
| 0.00 | 1.78 | 0.00 | 0.93 | -23.12 | 113.62 | 0.84 | 182.45 | 0.3180 | -997.0 | -799.7 | |
| 0.00 | 1.33 | 0.00 | 0.69 | -20.46 | 113.61 | 0.83 | 182.86 | 0.2736 | -1004.0 | -756.9 | |
| 0.00 | 1.78 | 0.00 | 0.94 | -25.04 | 113.60 | 0.82 | 182.14 | 0.3497 | -691.0 | -648.5 | |
| 0.00 | 0.62 | 0.00 | 0.34 | -28.03 | 113.61 | 0.84 | 181.87 | 0.3983 | 629.0 | 552.6 | |
| 0.00 | 1.42 | 0.00 | 0.75 | -24.27 | 113.43 | 0.65 | 181.77 | 0.3369 | -295.0 | -165.2 | |
| 0.00 | 1.78 | 0.00 | 0.93 | -23.95 | 113.36 | 0.58 | 181.62 | 0.3316 | -821.0 | -689.0 | |
| 0.00 | 0.80 | 0.00 | 0.43 | -27.60 | 112.83 | 0.05 | 180.12 | 0.3912 | 664.0 | 553.1 | |
| 0.00 | 0.98 | 0.00 | 0.51 | -21.16 | 112.64 | -0.14 | 179.55 | 0.2849 | -842.0 | -644.0 | |
| 0.00 | 1.60 | 0.00 | 0.82 | -20.21 | 111.87 | -0.91 | 176.83 | 0.2694 | -911.0 | -718.5 | |
| 0.00 | 1.78 | 0.00 | 0.92 | -20.53 | 111.77 | -1.00 | 176.56 | 0.2748 | -838.0 | -673.0 | |
| 0.00 | 1.07 | 0.00 | 0.57 | -25.97 | 110.31 | -2.46 | 173.93 | 0.3668 | -949.0 | -787.5 | |
| 0.00 | 1.16 | 0.00 | 0.61 | -24.23 | 110.35 | -2.43 | 173.42 | 0.3384 | -737.0 | -645.2 | |
| 0.00 | 1.16 | 0.00 | 0.62 | -26.22 | 110.27 | -2.50 | 173.91 | 0.3710 | -913.0 | -740.0 | |
| 0.00 | 1.16 | 0.00 | 0.61 | -23.90 | 108.84 | -3.94 | 169.21 | 0.3368 | -871.0 | -519.9 | |
| 0.00 | 1.25 | 0.00 | 0.65 | -23.60 | 107.82 | -4.95 | 166.30 | 0.3356 | -795.0 | -632.6 | |
| 0.00 | 1.07 | 0.00 | 0.56 | -23.95 | 107.64 | -5.13 | 166.10 | 0.3419 | -387.0 | -391.2 | |
| 0.00 | 0.71 | 0.00 | 0.38 | -26.85 | 106.77 | -6.01 | 166.11 | 0.3909 | -758.0 | -572.2 | |
| 0.00 | 2.31 | 0.00 | 1.27 | -29.35 | 106.41 | -6.36 | 166.98 | 0.4307 | -744.0 | -614.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
