SDO HMI 2014-04-26 03:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 49.21 | 304.97 | 25.83 | 160.23 | -23.72 | 115.77 | 3.54 | 189.93 | 0.3342 | 420.2 | 320.3 | |
|
previous
or next observation for the same group /

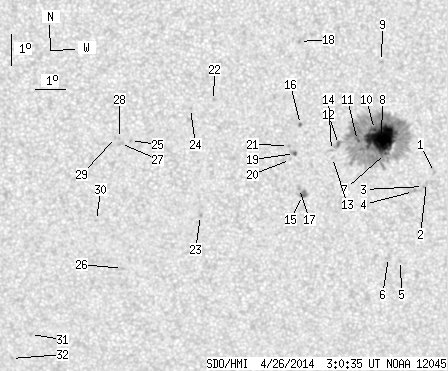

back to the solar disc SDO HMI 2014-04-26 03:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.07 | 0.00 | 0.57 | -24.59 | 118.13 | 5.90 | 195.33 | 0.3553 | 708.0 | 447.6 | |
| 0.00 | 0.98 | 0.00 | 0.52 | -24.92 | 117.87 | 5.65 | 194.45 | 0.3593 | 750.0 | 607.3 | |
| 0.00 | 0.98 | 0.00 | 0.52 | -25.05 | 117.78 | 5.56 | 194.12 | 0.3610 | 824.0 | 655.8 | |
| 0.00 | 2.67 | 0.00 | 1.42 | -25.21 | 117.45 | 5.23 | 193.21 | 0.3623 | 841.0 | 671.8 | |
| 0.00 | 0.89 | 0.00 | 0.48 | -27.45 | 117.11 | 4.88 | 191.03 | 0.3965 | 655.0 | 632.5 | |
| 0.00 | 2.49 | 0.00 | 1.34 | -27.36 | 116.70 | 4.47 | 190.17 | 0.3938 | 330.0 | 303.6 | |
| 0.27 | 264.83 | 0.14 | 138.98 | -24.00 | 116.48 | 4.25 | 191.56 | 0.3395 | 678.3 | 434.3 | |
| 43.52 | -7.00 | 22.83 | -7.00 | -23.52 | 116.33 | 4.10 | 191.48 | 0.3313 | 1309.6 | 999999 | |
| 0.00 | 1.51 | 0.00 | 0.78 | -21.08 | 116.26 | 4.04 | 193.08 | 0.2915 | -825.0 | -650.4 | |
| 1.60 | -7.00 | 0.84 | -7.00 | -23.23 | 116.09 | 3.87 | 191.01 | 0.3259 | 1171.6 | 999999 | |
| 0.89 | -7.00 | 0.47 | -7.00 | -23.58 | 115.54 | 3.31 | 189.28 | 0.3300 | 900.7 | 999999 | |
| 0.62 | -7.00 | 0.33 | -7.00 | -23.71 | 114.92 | 2.69 | 187.50 | 0.3306 | 862.7 | 999999 | |
| 0.00 | 1.33 | 0.00 | 0.70 | -24.13 | 114.72 | 2.50 | 186.81 | 0.3370 | -142.0 | -142.5 | |
| 0.00 | 1.16 | 0.00 | 0.61 | -23.91 | 114.69 | 2.46 | 186.80 | 0.3333 | 606.0 | 469.9 | |
| 1.25 | 4.72 | 0.66 | 2.50 | -25.35 | 113.75 | 1.52 | 183.89 | 0.3556 | -905.4 | -797.6 | |
| 0.44 | 1.51 | 0.23 | 0.79 | -23.08 | 113.66 | 1.43 | 184.16 | 0.3180 | -912.6 | -750.2 | |
| 0.00 | 1.69 | 0.00 | 0.89 | -25.13 | 113.64 | 1.42 | 183.67 | 0.3518 | -980.0 | -838.3 | |
| 0.00 | 1.07 | 0.00 | 0.55 | -20.46 | 113.60 | 1.38 | 184.73 | 0.2742 | -943.0 | -769.8 | |
| 0.62 | 2.76 | 0.33 | 1.45 | -24.00 | 113.47 | 1.24 | 183.42 | 0.3331 | -891.1 | -774.2 | |
| 0.00 | 1.25 | 0.00 | 0.65 | -24.20 | 113.34 | 1.11 | 183.03 | 0.3362 | -576.0 | -354.1 | |
| 0.00 | 1.07 | 0.00 | 0.56 | -23.75 | 113.27 | 1.04 | 182.92 | 0.3287 | -837.0 | -732.1 | |
| 0.00 | 0.80 | 0.00 | 0.42 | -22.31 | 110.81 | -1.41 | 175.70 | 0.3053 | -838.0 | -686.8 | |
| 0.00 | 1.51 | 0.00 | 0.80 | -25.99 | 110.33 | -1.89 | 175.33 | 0.3665 | -936.0 | -745.9 | |
| 0.00 | 1.07 | 0.00 | 0.56 | -22.56 | 110.06 | -2.17 | 173.52 | 0.3107 | -744.0 | -567.1 | |
| 0.00 | 0.89 | 0.00 | 0.47 | -23.57 | 108.06 | -4.16 | 168.40 | 0.3323 | -766.0 | -668.8 | |
| 0.00 | 0.71 | 0.00 | 0.38 | -27.71 | 107.64 | -4.59 | 169.75 | 0.3996 | -751.0 | -570.2 | |
| 0.00 | 2.49 | 0.00 | 1.31 | -23.66 | 107.73 | -4.50 | 167.57 | 0.3350 | -863.0 | -682.7 | |
| 0.00 | 0.80 | 0.00 | 0.42 | -23.50 | 107.70 | -4.52 | 167.38 | 0.3325 | -792.0 | -651.6 | |
| 0.00 | 1.16 | 0.00 | 0.61 | -23.47 | 107.57 | -4.65 | 167.01 | 0.3325 | -733.0 | -608.5 | |
| 0.00 | 0.98 | 0.00 | 0.52 | -26.13 | 106.83 | -5.40 | 167.01 | 0.3775 | -684.0 | -514.3 | |
| 0.00 | 1.33 | 0.00 | 0.74 | -29.86 | 104.32 | -7.91 | 164.36 | 0.4445 | -773.0 | -546.7 | |
| 0.00 | 1.25 | 0.00 | 0.69 | -30.65 | 103.58 | -8.65 | 163.58 | 0.4595 | -711.0 | -512.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
