SDO HMI 2014-04-26 12:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 27.31 | 0.00 | 16.77 | -20.03 | 140.84 | 33.54 | 241.67 | 0.5915 | 50.0 | 114.3 | |
|
previous
or next observation for the same group /

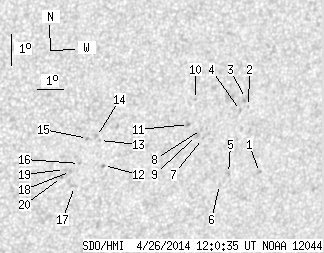

back to the solar disc SDO HMI 2014-04-26 12:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.42 | 0.00 | 0.92 | -20.76 | 144.68 | 37.39 | 242.66 | 0.6414 | 548.0 | 411.5 | |
| 0.00 | 0.89 | 0.00 | 0.56 | -18.73 | 143.69 | 36.40 | 245.28 | 0.6209 | 602.0 | 505.6 | |
| 0.00 | 3.11 | 0.00 | 1.96 | -18.49 | 143.52 | 36.22 | 245.58 | 0.6177 | 528.0 | 626.9 | |
| 0.00 | 1.16 | 0.00 | 0.73 | -18.87 | 143.41 | 36.12 | 244.94 | 0.6180 | 745.0 | 581.1 | |
| 0.00 | 1.60 | 0.00 | 1.02 | -20.85 | 143.46 | 36.16 | 241.93 | 0.6272 | 708.0 | 603.7 | |
| 0.00 | 0.80 | 0.00 | 0.51 | -21.21 | 143.20 | 35.90 | 241.26 | 0.6257 | 413.0 | 395.1 | |
| 0.00 | 0.89 | 0.00 | 0.55 | -19.80 | 142.15 | 34.86 | 242.87 | 0.6064 | 566.0 | 525.0 | |
| 0.00 | 0.89 | 0.00 | 0.55 | -19.53 | 142.04 | 34.75 | 243.25 | 0.6038 | 722.0 | 539.3 | |
| 0.00 | 3.03 | 0.00 | 1.87 | -19.72 | 141.89 | 34.60 | 242.87 | 0.6029 | 470.0 | 480.1 | |
| 0.00 | 0.71 | 0.00 | 0.44 | -18.61 | 141.59 | 34.30 | 244.48 | 0.5940 | 649.0 | 520.2 | |
| 0.00 | 1.51 | 0.00 | 0.93 | -19.39 | 141.50 | 34.21 | 243.18 | 0.5965 | 836.0 | 697.8 | |
| 0.00 | 1.33 | 0.00 | 0.80 | -20.80 | 138.58 | 31.29 | 239.18 | 0.5675 | -658.0 | -541.3 | |
| 0.00 | 0.89 | 0.00 | 0.53 | -20.03 | 138.26 | 30.96 | 240.23 | 0.5590 | -511.0 | -440.0 | |
| 0.00 | 1.78 | 0.00 | 1.06 | -19.91 | 138.12 | 30.82 | 240.34 | 0.5566 | -578.0 | -393.1 | |
| 0.00 | 1.25 | 0.00 | 0.74 | -19.98 | 137.80 | 30.50 | 240.00 | 0.5530 | -741.0 | -638.4 | |
| 0.00 | 0.89 | 0.00 | 0.53 | -20.77 | 137.67 | 30.38 | 238.60 | 0.5561 | -698.0 | -616.2 | |
| 0.00 | 2.31 | 0.00 | 1.38 | -21.50 | 137.65 | 30.35 | 237.40 | 0.5603 | -611.0 | -464.0 | |
| 0.00 | 1.16 | 0.00 | 0.69 | -21.04 | 137.39 | 30.10 | 237.97 | 0.5542 | -696.0 | -619.4 | |
| 0.00 | 0.71 | 0.00 | 0.42 | -20.98 | 137.16 | 29.86 | 237.89 | 0.5510 | -552.0 | -573.4 | |
| 0.00 | 0.98 | 0.00 | 0.58 | -21.24 | 137.10 | 29.81 | 237.43 | 0.5519 | -743.0 | -661.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
