SDO HMI 2014-04-26 18:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.53 | 10.41 | 0.35 | 6.58 | -20.31 | 139.88 | 35.89 | 242.48 | 0.6213 | -20.5 | -26.1 | |
|
previous
or next observation for the same group /

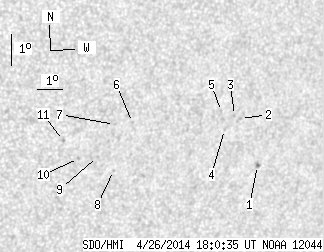

back to the solar disc SDO HMI 2014-04-26 18:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.53 | 1.42 | 0.35 | 0.95 | -20.96 | 143.63 | 39.64 | 243.37 | 0.6688 | 655.8 | 553.3 | |
| 0.00 | 0.98 | 0.00 | 0.64 | -19.53 | 142.49 | 38.51 | 244.97 | 0.6499 | 570.0 | 451.3 | |
| 0.00 | 0.89 | 0.00 | 0.58 | -19.45 | 142.23 | 38.24 | 244.98 | 0.6463 | 628.0 | 472.3 | |
| 0.00 | 0.98 | 0.00 | 0.63 | -19.91 | 141.94 | 37.96 | 244.19 | 0.6447 | 665.0 | 518.9 | |
| 0.00 | 0.80 | 0.00 | 0.51 | -19.35 | 141.67 | 37.68 | 244.89 | 0.6392 | 791.0 | 602.9 | |
| 0.00 | 0.89 | 0.00 | 0.55 | -19.85 | 138.27 | 34.28 | 242.49 | 0.5996 | -573.0 | -470.0 | |
| 0.00 | 0.71 | 0.00 | 0.44 | -19.94 | 137.59 | 33.61 | 241.97 | 0.5916 | -690.0 | -604.9 | |
| 0.00 | 0.80 | 0.00 | 0.50 | -21.38 | 137.92 | 33.93 | 239.91 | 0.6030 | -579.0 | -443.7 | |
| 0.00 | 0.98 | 0.00 | 0.60 | -20.97 | 137.19 | 33.20 | 240.12 | 0.5919 | -605.0 | -475.2 | |
| 0.00 | 1.16 | 0.00 | 0.70 | -21.06 | 136.48 | 32.49 | 239.54 | 0.5838 | -674.0 | -552.5 | |
| 0.00 | 0.80 | 0.00 | 0.48 | -20.52 | 135.78 | 31.79 | 239.96 | 0.5721 | -651.0 | -560.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
