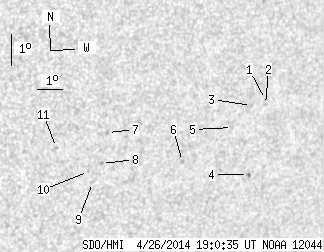

SDO HMI 2014-04-26 19:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.36 | 11.66 | 0.24 | 7.45 | -20.22 | 140.39 | 36.95 | 243.12 | 0.6339 | 65.0 | 54.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-26 19:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.71 | 0.00 | 0.47 | -18.61 | 143.63 | 40.20 | 246.99 | 0.6669 | 635.0 | 597.2 | |
| 0.00 | 1.16 | 0.00 | 0.77 | -18.76 | 143.67 | 40.24 | 246.78 | 0.6679 | 487.0 | 354.2 | |
| 0.00 | 0.71 | 0.00 | 0.47 | -18.82 | 143.11 | 39.67 | 246.48 | 0.6613 | 702.0 | 598.0 | |
| 0.36 | 1.51 | 0.24 | 1.01 | -20.97 | 143.63 | 40.20 | 243.59 | 0.6752 | 667.8 | 554.8 | |
| 0.00 | 0.98 | 0.00 | 0.64 | -19.54 | 142.52 | 39.09 | 245.20 | 0.6569 | 587.0 | 468.5 | |
| 0.00 | 1.33 | 0.00 | 0.86 | -20.69 | 140.81 | 37.37 | 242.75 | 0.6410 | 744.0 | 608.5 | |
| 0.00 | 1.16 | 0.00 | 0.71 | -19.92 | 137.62 | 34.19 | 242.33 | 0.5987 | -764.0 | -599.0 | |
| 0.00 | 1.16 | 0.00 | 0.72 | -20.89 | 137.63 | 34.20 | 240.81 | 0.6037 | -659.0 | -589.6 | |
| 0.00 | 1.16 | 0.00 | 0.72 | -21.50 | 137.44 | 34.01 | 239.76 | 0.6046 | -512.0 | -350.2 | |
| 0.00 | 0.80 | 0.00 | 0.49 | -21.17 | 137.20 | 33.76 | 240.14 | 0.5998 | -729.0 | -574.0 | |
| 0.00 | 0.98 | 0.00 | 0.59 | -20.47 | 135.79 | 32.35 | 240.39 | 0.5789 | -588.0 | -515.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
