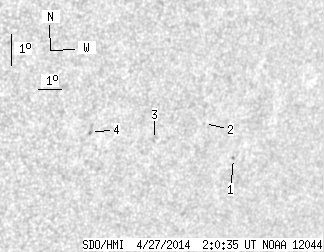

SDO HMI 2014-04-27 02:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.59 | 0.00 | 4.46 | -20.72 | 140.54 | 40.98 | 244.18 | 0.6831 | 253.8 | 272.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-27 02:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.16 | 0.00 | 0.82 | -21.16 | 143.74 | 44.18 | 244.76 | 0.7209 | 603.0 | 508.7 | |
| 0.00 | 0.89 | 0.00 | 0.61 | -20.14 | 142.09 | 42.53 | 245.60 | 0.6992 | 531.0 | 415.1 | |
| 0.00 | 3.20 | 0.00 | 2.16 | -20.74 | 140.13 | 40.57 | 244.03 | 0.6788 | 594.0 | 503.4 | |
| 0.00 | 1.34 | 0.00 | 0.87 | -20.65 | 137.43 | 37.87 | 243.01 | 0.6469 | -713.0 | -627.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
