SDO HMI 2014-04-27 02:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 47.00 | 268.88 | 25.60 | 146.37 | -23.58 | 115.59 | 16.02 | 217.57 | 0.4170 | 598.2 | 396.3 | |
|
previous
or next observation for the same group /

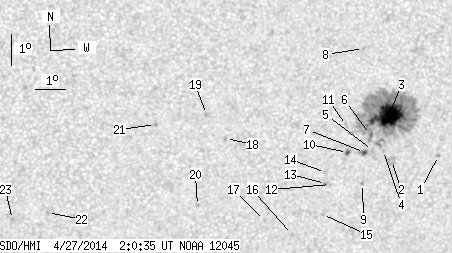

back to the solar disc SDO HMI 2014-04-27 02:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.60 | 0.00 | 0.89 | -24.58 | 117.82 | 18.25 | 219.49 | 0.4498 | 715.0 | 528.3 | |
| 0.00 | 6.94 | 0.00 | 3.82 | -24.78 | 116.21 | 16.65 | 216.75 | 0.4365 | 535.0 | 513.2 | |
| 43.44 | 232.09 | 23.65 | 126.33 | -23.34 | 115.92 | 16.35 | 218.54 | 0.4167 | 1201.6 | 454.5 | |
| 0.00 | 0.71 | 0.00 | 0.39 | -24.46 | 115.89 | 16.33 | 216.72 | 0.4297 | 599.0 | 495.9 | |
| 0.00 | 1.34 | 0.00 | 0.73 | -24.47 | 115.51 | 15.95 | 216.10 | 0.4263 | 631.0 | 533.9 | |
| 0.71 | -3.00 | 0.39 | -3.00 | -23.96 | 115.38 | 15.81 | 216.66 | 0.4188 | 599.4 | 999999 | |
| 1.60 | 4.36 | 0.88 | 2.38 | -24.54 | 115.24 | 15.68 | 215.55 | 0.4246 | 842.4 | 651.8 | |
| 0.00 | 0.98 | 0.00 | 0.52 | -21.24 | 114.83 | 15.26 | 220.31 | 0.3809 | -709.0 | -479.2 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -25.54 | 115.30 | 15.74 | 214.19 | 0.4375 | -877.0 | -636.8 | |
| 1.25 | 2.23 | 0.68 | 1.21 | -24.55 | 114.66 | 15.10 | 214.55 | 0.4195 | 817.0 | 633.5 | |
| 0.00 | 2.23 | 0.00 | 1.21 | -23.69 | 114.52 | 14.96 | 215.63 | 0.4075 | 835.0 | 695.4 | |
| 0.00 | 0.89 | 0.00 | 0.49 | -25.59 | 114.20 | 14.64 | 212.28 | 0.4286 | -734.0 | -644.1 | |
| 0.00 | 1.51 | 0.00 | 0.83 | -25.56 | 114.02 | 14.46 | 212.02 | 0.4268 | -869.0 | -747.3 | |
| 0.00 | 2.14 | 0.00 | 1.17 | -25.21 | 113.98 | 14.42 | 212.43 | 0.4219 | -590.0 | -509.0 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -26.57 | 114.05 | 14.49 | 210.71 | 0.4399 | 769.0 | 687.2 | |
| 0.00 | 1.16 | 0.00 | 0.64 | -27.24 | 113.08 | 13.52 | 208.23 | 0.4413 | 738.0 | 604.3 | |
| 0.00 | 0.89 | 0.00 | 0.49 | -26.80 | 112.06 | 12.50 | 206.96 | 0.4279 | 616.0 | 542.6 | |
| 0.00 | 1.16 | 0.00 | 0.62 | -24.17 | 110.47 | 10.91 | 207.16 | 0.3799 | -794.0 | -650.8 | |
| 0.00 | 1.34 | 0.00 | 0.71 | -23.41 | 109.77 | 10.21 | 206.67 | 0.3640 | -821.0 | -664.2 | |
| 0.00 | 1.25 | 0.00 | 0.67 | -26.34 | 109.71 | 10.15 | 203.00 | 0.4057 | -764.0 | -633.1 | |
| 0.00 | 1.25 | 0.00 | 0.66 | -23.75 | 108.09 | 8.53 | 202.42 | 0.3576 | -923.0 | -760.6 | |
| 0.00 | 1.42 | 0.00 | 0.76 | -26.61 | 104.62 | 5.06 | 191.87 | 0.3853 | -771.0 | -629.6 | |
| 0.00 | 1.07 | 0.00 | 0.57 | -26.85 | 103.45 | 3.88 | 189.06 | 0.3855 | -856.0 | -727.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
