SDO HMI 2014-04-27 08:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.08 | 264.21 | 24.45 | 146.41 | -23.64 | 115.49 | 19.22 | 222.27 | 0.4503 | 730.7 | 374.6 | |
|
previous
or next observation for the same group /

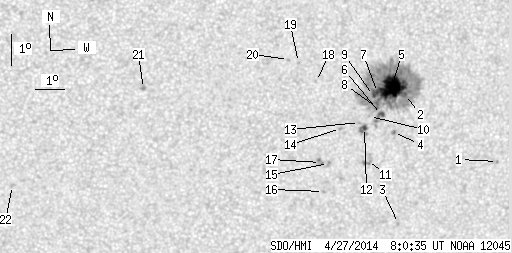

back to the solar disc SDO HMI 2014-04-27 08:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.80 | 0.00 | 0.46 | -25.60 | 119.99 | 23.72 | 224.79 | 0.5170 | 660.0 | 578.3 | |
| 0.89 | 229.14 | 0.50 | 126.94 | -23.54 | 116.32 | 20.05 | 223.60 | 0.4576 | 685.3 | 472.6 | |
| 0.00 | 1.07 | 0.00 | 0.61 | -27.72 | 116.81 | 20.54 | 217.96 | 0.5069 | 787.0 | 620.8 | |
| 0.00 | 2.23 | 0.00 | 1.25 | -24.77 | 116.10 | 19.83 | 221.34 | 0.4682 | 795.0 | 702.3 | |
| 36.07 | -2.00 | 19.99 | -2.00 | -23.33 | 115.80 | 19.53 | 223.25 | 0.4499 | 1306.8 | 999999 | |
| 1.87 | -2.00 | 1.04 | -2.00 | -24.20 | 115.58 | 19.31 | 221.53 | 0.4568 | 749.9 | 999999 | |
| 1.69 | -2.00 | 0.94 | -2.00 | -23.50 | 115.34 | 19.07 | 222.32 | 0.4468 | 971.2 | 999999 | |
| 0.62 | -2.00 | 0.35 | -2.00 | -23.98 | 115.38 | 19.10 | 221.59 | 0.4523 | 793.7 | 999999 | |
| 1.25 | -2.00 | 0.69 | -2.00 | -23.60 | 115.21 | 18.94 | 221.98 | 0.4465 | 917.1 | 999999 | |
| 0.00 | 0.53 | 0.00 | 0.30 | -24.28 | 115.18 | 18.90 | 220.84 | 0.4534 | 265.0 | 227.5 | |
| 0.00 | 6.06 | 0.00 | 3.40 | -25.69 | 115.33 | 19.06 | 218.89 | 0.4706 | -254.0 | -715.6 | |
| 1.69 | 6.32 | 0.94 | 3.52 | -24.63 | 115.06 | 18.78 | 220.12 | 0.4561 | 937.3 | 652.3 | |
| 0.00 | 1.07 | 0.00 | 0.59 | -24.48 | 114.86 | 18.58 | 220.08 | 0.4524 | 489.0 | 473.2 | |
| 0.00 | 1.51 | 0.00 | 0.84 | -24.69 | 114.22 | 17.95 | 218.83 | 0.4485 | 662.0 | 557.3 | |
| 0.00 | 2.40 | 0.00 | 1.34 | -25.82 | 113.97 | 17.70 | 216.76 | 0.4592 | -877.0 | -679.3 | |
| 0.00 | 1.51 | 0.00 | 0.85 | -26.73 | 113.94 | 17.67 | 215.42 | 0.4696 | 890.0 | 691.4 | |
| 0.00 | 4.01 | 0.00 | 2.23 | -25.80 | 113.69 | 17.42 | 216.38 | 0.4562 | -867.0 | -798.0 | |
| 0.00 | 0.80 | 0.00 | 0.44 | -23.20 | 113.19 | 16.91 | 219.61 | 0.4212 | -593.0 | -442.3 | |
| 0.00 | 1.16 | 0.00 | 0.63 | -22.61 | 112.50 | 16.23 | 219.48 | 0.4074 | -604.0 | -518.2 | |
| 0.00 | 1.51 | 0.00 | 0.82 | -22.52 | 112.15 | 15.87 | 219.05 | 0.4028 | -691.0 | -507.4 | |
| 0.00 | 2.40 | 0.00 | 1.28 | -23.52 | 107.36 | 11.08 | 208.35 | 0.3728 | -956.0 | -838.8 | |
| 0.00 | 1.69 | 0.00 | 0.91 | -26.70 | 103.16 | 6.89 | 195.85 | 0.3943 | -849.0 | -735.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
