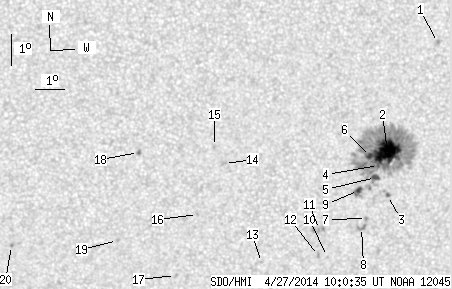

SDO HMI 2014-04-27 10:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 48.00 | 284.50 | 26.76 | 158.60 | -23.70 | 115.35 | 20.17 | 223.45 | 0.4613 | 625.3 | 342.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-27 10:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.69 | 0.00 | 0.93 | -19.88 | 117.00 | 21.82 | 232.33 | 0.4436 | -791.0 | -748.6 | |
| 37.31 | 253.69 | 20.81 | 141.49 | -23.36 | 115.79 | 20.61 | 224.64 | 0.4619 | 1258.4 | 454.1 | |
| 0.80 | 3.21 | 0.45 | 1.81 | -24.76 | 116.03 | 20.85 | 222.68 | 0.4788 | 786.7 | 647.0 | |
| 0.27 | -2.00 | 0.15 | -2.00 | -23.81 | 115.55 | 20.37 | 223.57 | 0.4639 | 752.0 | 999999 | |
| 3.12 | -2.00 | 1.74 | -2.00 | -24.20 | 115.51 | 20.33 | 222.90 | 0.4675 | 754.5 | 999999 | |
| 3.65 | -2.00 | 2.03 | -2.00 | -23.53 | 115.22 | 20.05 | 223.60 | 0.4576 | 1015.8 | 999999 | |
| 0.00 | 1.78 | 0.00 | 1.00 | -25.52 | 115.41 | 20.24 | 220.72 | 0.4804 | -801.0 | -524.8 | |
| 0.00 | 4.54 | 0.00 | 2.57 | -25.82 | 115.29 | 20.11 | 220.11 | 0.4823 | -485.0 | -764.1 | |
| 2.49 | -2.00 | 1.39 | -2.00 | -24.63 | 114.98 | 19.80 | 221.51 | 0.4665 | 928.6 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.45 | -26.79 | 114.24 | 19.06 | 217.31 | 0.4830 | 601.0 | 520.2 | |
| 0.00 | 6.32 | 0.00 | 3.54 | -25.92 | 113.81 | 18.63 | 217.95 | 0.4691 | -838.0 | -708.4 | |
| 0.00 | 1.51 | 0.00 | 0.85 | -26.76 | 113.92 | 18.74 | 216.89 | 0.4797 | 951.0 | 768.3 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -27.03 | 111.93 | 16.76 | 213.65 | 0.4653 | 827.0 | 497.8 | |
| 0.00 | 1.60 | 0.00 | 0.87 | -23.86 | 110.22 | 15.04 | 215.43 | 0.4111 | -715.0 | -624.8 | |
| 0.00 | 1.25 | 0.00 | 0.67 | -23.33 | 109.82 | 14.64 | 215.57 | 0.4007 | -671.0 | -593.9 | |
| 0.00 | 0.98 | 0.00 | 0.54 | -25.52 | 109.49 | 14.31 | 211.76 | 0.4256 | -799.0 | -630.5 | |
| 0.00 | 1.69 | 0.00 | 0.94 | -27.52 | 108.97 | 13.79 | 208.31 | 0.4477 | -590.0 | -552.2 | |
| 0.36 | 2.14 | 0.19 | 1.14 | -23.56 | 107.27 | 12.09 | 210.37 | 0.3814 | -951.5 | -848.7 | |
| 0.00 | 1.07 | 0.00 | 0.58 | -26.40 | 106.83 | 11.65 | 205.81 | 0.4172 | -744.0 | -652.0 | |
| 0.00 | 1.25 | 0.00 | 0.67 | -26.61 | 103.22 | 8.04 | 198.38 | 0.3985 | -932.0 | -809.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
