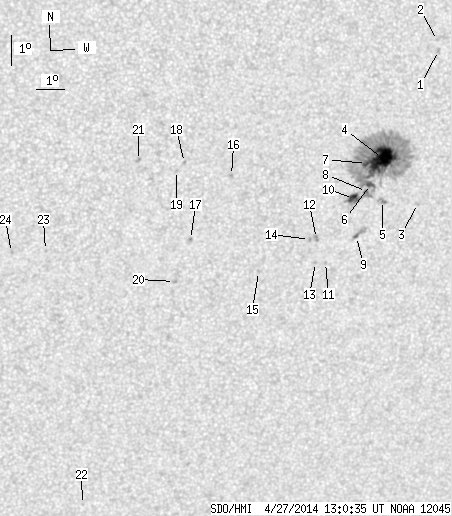

SDO HMI 2014-04-27 13:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 50.38 | 295.04 | 28.41 | 166.17 | -23.85 | 115.13 | 21.59 | 224.99 | 0.4784 | 569.2 | 337.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-27 13:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.96 | 0.00 | 1.10 | -19.91 | 117.07 | 23.53 | 234.12 | 0.4652 | -819.0 | -670.7 | |
| 0.00 | 0.80 | 0.00 | 0.45 | -19.60 | 116.98 | 23.45 | 234.61 | 0.4617 | -659.0 | -472.0 | |
| 0.00 | 1.42 | 0.00 | 0.82 | -24.77 | 117.19 | 23.65 | 225.97 | 0.5087 | 537.0 | 487.8 | |
| 36.23 | 258.70 | 20.42 | 145.80 | -23.37 | 115.67 | 22.13 | 226.48 | 0.4789 | 1249.6 | 452.5 | |
| 0.00 | 4.10 | 0.00 | 2.33 | -24.71 | 115.91 | 22.38 | 224.61 | 0.4944 | 868.0 | 674.6 | |
| 3.38 | -4.00 | 1.91 | -4.00 | -24.21 | 115.39 | 21.86 | 224.78 | 0.4840 | 822.0 | 999999 | |
| 2.31 | -4.00 | 1.30 | -4.00 | -23.55 | 115.13 | 21.60 | 225.55 | 0.4746 | 999.9 | 999999 | |
| 0.80 | -4.00 | 0.45 | -4.00 | -24.44 | 115.29 | 21.75 | 224.30 | 0.4851 | 780.3 | 999999 | |
| 0.89 | 6.50 | 0.51 | 3.71 | -25.90 | 115.20 | 21.67 | 221.95 | 0.4988 | -971.9 | -839.0 | |
| 6.77 | -4.00 | 3.82 | -4.00 | -24.68 | 114.86 | 21.33 | 223.41 | 0.4830 | 820.9 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.61 | -26.77 | 114.25 | 20.71 | 219.49 | 0.4985 | 533.0 | 488.8 | |
| 0.00 | 2.67 | 0.00 | 1.51 | -26.00 | 113.78 | 20.25 | 220.01 | 0.4857 | -812.0 | -738.2 | |
| 0.00 | 1.16 | 0.00 | 0.66 | -26.78 | 113.89 | 20.35 | 219.02 | 0.4952 | 934.0 | 743.8 | |
| 0.00 | 1.60 | 0.00 | 0.91 | -26.04 | 113.54 | 20.00 | 219.64 | 0.4838 | -816.0 | -725.0 | |
| 0.00 | 1.07 | 0.00 | 0.60 | -27.12 | 111.90 | 18.37 | 215.87 | 0.4806 | 710.0 | 548.2 | |
| 0.00 | 2.14 | 0.00 | 1.17 | -24.04 | 110.48 | 16.95 | 218.30 | 0.4315 | -847.0 | -669.8 | |
| 0.00 | 1.51 | 0.00 | 0.84 | -26.13 | 109.35 | 15.81 | 213.41 | 0.4462 | -837.0 | -711.6 | |
| 0.00 | 1.34 | 0.00 | 0.72 | -23.66 | 108.82 | 15.29 | 216.17 | 0.4110 | -679.0 | -520.6 | |
| 0.00 | 1.25 | 0.00 | 0.68 | -23.92 | 108.58 | 15.05 | 215.35 | 0.4119 | -617.0 | -533.4 | |
| 0.00 | 2.23 | 0.00 | 1.24 | -27.51 | 108.98 | 15.45 | 211.01 | 0.4605 | -590.0 | -514.4 | |
| 0.00 | 2.58 | 0.00 | 1.39 | -23.62 | 107.25 | 13.72 | 213.42 | 0.3962 | -963.0 | -788.3 | |
| 0.00 | 0.71 | 0.00 | 0.42 | -35.11 | 106.79 | 13.26 | 200.18 | 0.5461 | 510.0 | 470.8 | |
| 0.00 | 1.07 | 0.00 | 0.58 | -26.57 | 104.38 | 10.84 | 204.08 | 0.4142 | -713.0 | -554.5 | |
| 0.00 | 1.16 | 0.00 | 0.63 | -26.65 | 103.22 | 9.69 | 201.71 | 0.4082 | -912.0 | -811.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
