SDO HMI 2014-04-28 16:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.68 | 207.04 | 21.11 | 132.96 | -23.52 | 114.56 | 35.89 | 237.55 | 0.6392 | 418.1 | 307.8 | |
|
previous
or next observation for the same group /

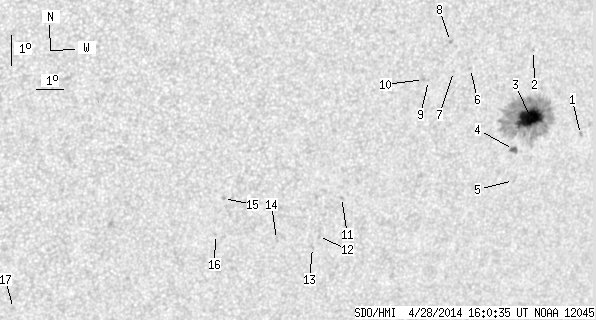

back to the solar disc SDO HMI 2014-04-28 16:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.78 | 0.00 | 1.19 | -23.81 | 117.31 | 38.65 | 238.70 | 0.6710 | 598.0 | 549.7 | |
| 0.00 | 1.16 | 0.00 | 0.73 | -21.24 | 114.57 | 35.90 | 241.00 | 0.6272 | -662.0 | -420.9 | |
| 30.28 | 183.71 | 19.55 | 118.49 | -23.36 | 115.08 | 36.41 | 238.17 | 0.6437 | 1126.3 | 389.9 | |
| 2.40 | 4.72 | 1.56 | 3.05 | -24.41 | 114.72 | 36.06 | 236.47 | 0.6453 | 710.7 | 502.5 | |
| 0.00 | 0.36 | 0.00 | 0.23 | -25.40 | 115.06 | 36.39 | 235.27 | 0.6545 | 296.0 | 396.0 | |
| 0.00 | 1.51 | 0.00 | 0.94 | -21.91 | 112.26 | 33.59 | 238.67 | 0.6031 | -692.0 | -510.1 | |
| 0.00 | 0.71 | 0.00 | 0.44 | -22.03 | 111.63 | 32.96 | 238.09 | 0.5963 | -685.0 | -559.8 | |
| 0.00 | 1.25 | 0.00 | 0.76 | -21.09 | 111.27 | 32.61 | 239.33 | 0.5867 | -755.0 | -701.4 | |
| 0.00 | 0.98 | 0.00 | 0.60 | -22.35 | 110.74 | 32.08 | 237.02 | 0.5877 | -708.0 | -562.4 | |
| 0.00 | 1.34 | 0.00 | 0.81 | -22.33 | 110.54 | 31.88 | 236.92 | 0.5852 | -780.0 | -624.9 | |
| 0.00 | 1.42 | 0.00 | 0.87 | -26.21 | 108.42 | 29.75 | 229.50 | 0.5877 | -645.0 | -576.4 | |
| 0.00 | 1.16 | 0.00 | 0.71 | -27.51 | 107.89 | 29.23 | 227.21 | 0.5923 | -460.0 | -431.1 | |
| 0.00 | 1.25 | 0.00 | 0.77 | -27.88 | 107.77 | 29.10 | 226.59 | 0.5940 | -666.0 | -592.7 | |
| 0.00 | 1.87 | 0.00 | 1.13 | -27.66 | 106.31 | 27.64 | 225.60 | 0.5773 | -727.0 | -554.2 | |
| 0.00 | 1.51 | 0.00 | 0.89 | -26.39 | 103.98 | 25.31 | 225.17 | 0.5421 | -725.0 | -629.1 | |
| 0.00 | 0.89 | 0.00 | 0.53 | -27.57 | 103.96 | 25.30 | 223.46 | 0.5528 | -719.0 | -621.2 | |
| 0.00 | 1.42 | 0.00 | 0.82 | -30.21 | 97.03 | 18.36 | 211.83 | 0.5182 | -699.0 | -543.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
