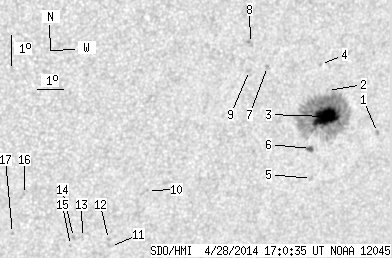

SDO HMI 2014-04-28 17:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.95 | 207.38 | 21.42 | 134.16 | -23.49 | 114.62 | 36.51 | 237.97 | 0.6459 | 466.4 | 312.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-28 17:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.05 | 0.00 | 1.38 | -23.78 | 117.34 | 39.23 | 239.02 | 0.6773 | 650.0 | 502.2 | |
| 0.00 | 0.98 | 0.00 | 0.63 | -22.54 | 114.84 | 36.73 | 239.51 | 0.6432 | 257.0 | 200.0 | |
| 31.08 | 183.26 | 20.20 | 118.98 | -23.37 | 115.02 | 36.91 | 238.42 | 0.6494 | 1115.9 | 390.1 | |
| 0.00 | 1.42 | 0.00 | 0.91 | -21.74 | 114.32 | 36.20 | 240.42 | 0.6332 | -619.0 | -441.2 | |
| 0.00 | 1.87 | 0.00 | 1.23 | -25.37 | 115.12 | 37.01 | 235.66 | 0.6610 | 444.0 | 412.1 | |
| 1.87 | 3.38 | 1.22 | 2.20 | -24.41 | 114.75 | 36.63 | 236.78 | 0.6517 | 728.8 | 575.7 | |
| 0.00 | 1.69 | 0.00 | 1.05 | -21.89 | 112.25 | 34.13 | 239.03 | 0.6095 | -702.0 | -545.4 | |
| 0.00 | 2.67 | 0.00 | 1.64 | -21.19 | 111.40 | 33.28 | 239.59 | 0.5955 | -613.0 | -607.4 | |
| 0.00 | 1.96 | 0.00 | 1.21 | -22.04 | 111.58 | 33.47 | 238.39 | 0.6024 | -541.0 | -394.4 | |
| 0.00 | 0.80 | 0.00 | 0.49 | -26.02 | 108.70 | 30.59 | 230.45 | 0.5953 | -696.0 | -568.0 | |
| 0.00 | 0.89 | 0.00 | 0.55 | -27.89 | 107.80 | 29.69 | 227.07 | 0.6001 | -622.0 | -495.7 | |
| 0.00 | 1.16 | 0.00 | 0.71 | -27.66 | 107.66 | 29.54 | 227.26 | 0.5968 | -759.0 | -599.5 | |
| 0.00 | 1.25 | 0.00 | 0.76 | -27.63 | 106.63 | 28.52 | 226.43 | 0.5861 | -620.0 | -422.1 | |
| 0.00 | 1.69 | 0.00 | 1.03 | -27.64 | 106.29 | 28.18 | 226.11 | 0.5826 | -755.0 | -662.2 | |
| 0.00 | 0.71 | 0.00 | 0.43 | -27.91 | 106.25 | 28.13 | 225.70 | 0.5844 | -515.0 | -442.2 | |
| 0.00 | 0.53 | 0.00 | 0.32 | -26.30 | 104.07 | 25.96 | 225.95 | 0.5482 | -643.0 | -588.3 | |
| 0.00 | 1.07 | 0.00 | 0.64 | -27.59 | 103.94 | 25.83 | 223.97 | 0.5583 | -709.0 | -602.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
