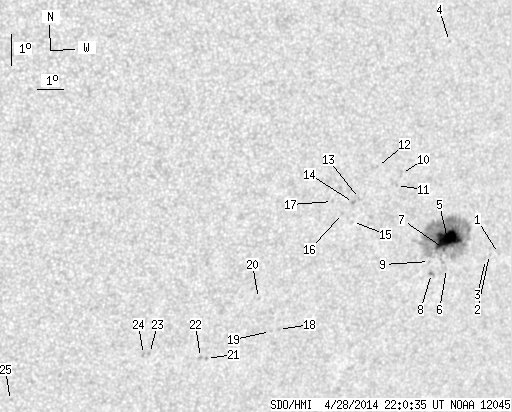

SDO HMI 2014-04-28 22:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.81 | 181.61 | 18.06 | 121.39 | -23.48 | 114.37 | 39.02 | 239.27 | 0.6739 | 243.8 | 318.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-28 22:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.71 | 0.00 | 0.50 | -23.74 | 117.31 | 41.97 | 240.30 | 0.7070 | 422.0 | 376.6 | |
| 0.00 | 0.71 | 0.00 | 0.49 | -23.80 | 116.93 | 41.59 | 240.07 | 0.7031 | 332.0 | 363.4 | |
| 0.00 | 0.36 | 0.00 | 0.25 | -23.96 | 116.82 | 41.48 | 239.80 | 0.7026 | 554.0 | 532.2 | |
| 0.00 | 0.80 | 0.00 | 0.51 | -17.22 | 113.20 | 37.86 | 247.97 | 0.6347 | -509.0 | -448.3 | |
| 26.54 | 156.50 | 17.88 | 105.28 | -23.37 | 114.95 | 39.60 | 239.76 | 0.6796 | 972.2 | 435.1 | |
| 0.00 | 0.71 | 0.00 | 0.48 | -24.33 | 115.25 | 39.91 | 238.59 | 0.6873 | 242.0 | 212.5 | |
| 0.27 | -5.00 | 0.18 | -5.00 | -23.70 | 114.89 | 39.55 | 239.28 | 0.6805 | 578.7 | 999999 | |
| 0.00 | 1.96 | 0.00 | 1.32 | -24.52 | 114.68 | 39.33 | 238.05 | 0.6819 | 624.0 | 504.6 | |
| 0.00 | 0.98 | 0.00 | 0.66 | -24.14 | 114.45 | 39.11 | 238.46 | 0.6777 | 395.0 | 345.5 | |
| 0.00 | 2.23 | 0.00 | 1.43 | -21.41 | 112.39 | 37.04 | 241.32 | 0.6416 | -501.0 | -402.5 | |
| 0.00 | 0.98 | 0.00 | 0.63 | -21.79 | 112.30 | 36.95 | 240.71 | 0.6423 | -461.0 | -463.9 | |
| 0.00 | 0.98 | 0.00 | 0.62 | -21.23 | 111.37 | 36.02 | 241.06 | 0.6286 | -659.0 | -553.7 | |
| 0.00 | 1.69 | 0.00 | 1.08 | -22.27 | 110.94 | 35.60 | 239.29 | 0.6288 | -657.0 | -565.5 | |
| 0.00 | 1.87 | 0.00 | 1.19 | -22.40 | 110.74 | 35.40 | 238.98 | 0.6271 | -833.0 | -703.4 | |
| 0.00 | 0.80 | 0.00 | 0.51 | -23.01 | 110.88 | 35.53 | 238.17 | 0.6319 | -507.0 | -458.9 | |
| 0.00 | 0.80 | 0.00 | 0.51 | -22.77 | 110.41 | 35.06 | 238.25 | 0.6252 | -474.0 | -372.8 | |
| 0.00 | 0.98 | 0.00 | 0.62 | -22.41 | 109.90 | 34.56 | 238.49 | 0.6174 | -680.0 | -555.2 | |
| 0.00 | 1.16 | 0.00 | 0.74 | -26.58 | 109.02 | 33.68 | 231.89 | 0.6325 | -399.0 | -322.8 | |
| 0.00 | 0.71 | 0.00 | 0.45 | -26.66 | 108.72 | 33.38 | 231.58 | 0.6298 | -629.0 | -555.8 | |
| 0.00 | 1.16 | 0.00 | 0.73 | -25.61 | 107.91 | 32.56 | 232.49 | 0.6141 | -457.0 | -477.0 | |
| 0.00 | 0.80 | 0.00 | 0.50 | -27.64 | 106.47 | 31.12 | 228.57 | 0.6130 | -718.0 | -616.6 | |
| 0.00 | 1.51 | 0.00 | 0.94 | -27.61 | 106.22 | 30.87 | 228.41 | 0.6102 | -751.0 | -583.8 | |
| 0.00 | 1.25 | 0.00 | 0.76 | -27.55 | 104.20 | 28.85 | 226.82 | 0.5889 | -691.0 | -563.1 | |
| 0.00 | 1.60 | 0.00 | 0.98 | -27.59 | 103.97 | 28.63 | 226.57 | 0.5869 | -787.0 | -608.0 | |
| 0.00 | 0.36 | 0.00 | 0.21 | -29.26 | 99.32 | 23.98 | 219.76 | 0.5564 | -667.0 | -578.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
