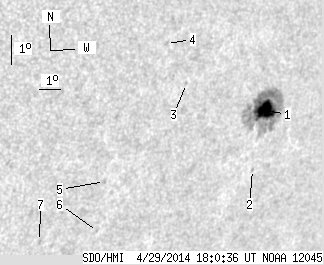

SDO HMI 2014-04-29 18:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.01 | 123.74 | 17.75 | 99.23 | -23.43 | 114.39 | 50.05 | 243.38 | 0.7889 | 617.0 | 288.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-29 18:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.01 | 116.26 | 17.75 | 93.69 | -23.34 | 114.68 | 50.34 | 243.59 | 0.7914 | 952.9 | 332.6 | |
| 0.00 | 1.25 | 0.00 | 1.02 | -25.24 | 115.05 | 50.70 | 241.37 | 0.7997 | 484.0 | 363.4 | |
| 0.00 | 1.07 | 0.00 | 0.79 | -22.70 | 110.47 | 46.12 | 243.15 | 0.7476 | -513.0 | -402.2 | |
| 0.00 | 1.69 | 0.00 | 1.22 | -21.49 | 109.04 | 44.69 | 244.26 | 0.7288 | -658.0 | -537.2 | |
| 0.00 | 1.16 | 0.00 | 0.84 | -26.00 | 108.11 | 43.76 | 238.02 | 0.7352 | -539.0 | -469.7 | |
| 0.00 | 0.62 | 0.00 | 0.46 | -27.63 | 108.57 | 44.23 | 236.14 | 0.7464 | -521.0 | -406.6 | |
| 0.00 | 1.69 | 0.00 | 1.21 | -28.08 | 106.08 | 41.73 | 234.44 | 0.7242 | -514.0 | -439.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
