SDO HMI 2014-04-30 05:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.02 | 98.29 | 16.58 | 90.15 | -23.36 | 114.36 | 56.09 | 244.87 | 0.8435 | 513.6 | 208.1 | |
|
previous
or next observation for the same group /

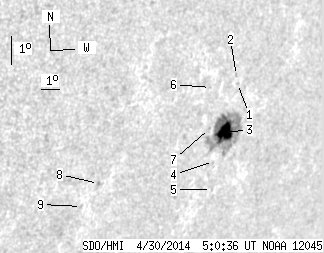

back to the solar disc SDO HMI 2014-04-30 05:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.25 | 0.00 | 1.13 | -21.74 | 114.29 | 56.02 | 246.76 | 0.8403 | -275.0 | -230.8 | |
| 0.00 | 0.89 | 0.00 | 0.81 | -21.50 | 114.09 | 55.81 | 247.01 | 0.8382 | -445.0 | -348.8 | |
| 18.02 | 90.53 | 16.58 | 83.41 | -23.31 | 114.55 | 56.28 | 244.97 | 0.8451 | 827.1 | 244.2 | |
| 0.00 | 0.54 | 0.00 | 0.49 | -24.26 | 114.46 | 56.19 | 243.85 | 0.8460 | 320.0 | 254.8 | |
| 0.00 | 0.71 | 0.00 | 0.67 | -25.14 | 114.96 | 56.69 | 242.92 | 0.8517 | 177.0 | 198.0 | |
| 0.00 | 0.27 | 0.00 | 0.23 | -21.95 | 112.86 | 54.59 | 246.24 | 0.8281 | -294.0 | -232.3 | |
| 0.00 | 0.89 | 0.00 | 0.80 | -23.24 | 113.56 | 55.29 | 244.86 | 0.8365 | 620.0 | 604.0 | |
| 0.00 | 1.69 | 0.00 | 1.38 | -25.30 | 108.67 | 50.40 | 241.17 | 0.7973 | -585.0 | -455.5 | |
| 0.00 | 1.52 | 0.00 | 1.23 | -26.08 | 108.23 | 49.95 | 240.09 | 0.7954 | -607.0 | -427.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
