SDO HMI 2014-04-30 06:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.73 | 91.07 | 17.48 | 84.70 | -23.29 | 114.35 | 56.62 | 245.04 | 0.8480 | 567.6 | 186.6 | |
|
previous
or next observation for the same group /

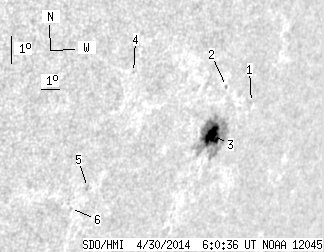

back to the solar disc SDO HMI 2014-04-30 06:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.98 | 0.00 | 0.95 | -22.11 | 116.16 | 58.43 | 246.74 | 0.8612 | 248.0 | 252.5 | |
| 0.00 | 1.07 | 0.00 | 0.99 | -21.70 | 114.37 | 56.65 | 246.92 | 0.8457 | -331.0 | -254.8 | |
| 18.73 | 85.63 | 17.48 | 79.96 | -23.27 | 114.53 | 56.80 | 245.11 | 0.8495 | 822.1 | 223.4 | |
| 0.00 | 0.54 | 0.00 | 0.44 | -21.55 | 109.11 | 51.39 | 246.02 | 0.7976 | -501.0 | -398.3 | |
| 0.00 | 1.87 | 0.00 | 1.55 | -25.30 | 108.71 | 50.98 | 241.34 | 0.8027 | -674.0 | -587.2 | |
| 0.00 | 0.98 | 0.00 | 0.81 | -26.02 | 108.22 | 50.50 | 240.33 | 0.8003 | -353.0 | -399.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
