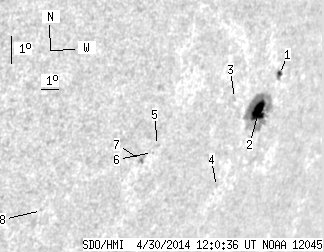

SDO HMI 2014-04-30 12:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.89 | 85.79 | 20.19 | 86.23 | -23.34 | 113.99 | 59.56 | 245.47 | 0.8717 | 432.3 | 163.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-30 12:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.32 | 4.82 | 2.38 | 4.94 | -22.03 | 114.93 | 60.49 | 247.13 | 0.8776 | -279.3 | -83.9 | |
| 17.21 | 71.42 | 17.49 | 72.62 | -23.26 | 114.43 | 60.00 | 245.66 | 0.8752 | 747.9 | 219.2 | |
| 0.00 | 2.23 | 0.00 | 2.15 | -22.94 | 112.66 | 58.22 | 245.73 | 0.8608 | 476.0 | 320.4 | |
| 0.00 | 0.71 | 0.00 | 0.72 | -25.76 | 113.61 | 59.18 | 242.68 | 0.8724 | 315.0 | 318.9 | |
| 0.00 | 1.34 | 0.00 | 1.20 | -24.67 | 109.18 | 54.75 | 243.03 | 0.8347 | -72.0 | -101.6 | |
| 0.00 | 0.54 | 0.00 | 0.48 | -24.91 | 109.05 | 54.61 | 242.72 | 0.8341 | -416.0 | -380.0 | |
| 0.36 | 3.75 | 0.32 | 3.32 | -25.20 | 108.61 | 54.17 | 242.27 | 0.8309 | -619.8 | -451.1 | |
| 0.00 | 0.98 | 0.00 | 0.80 | -27.09 | 104.30 | 49.86 | 238.82 | 0.7977 | -578.0 | -442.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
