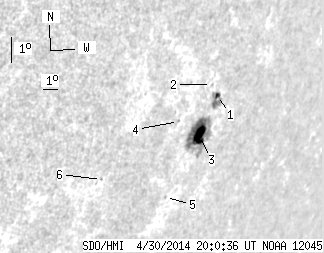

SDO HMI 2014-04-30 20:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.49 | 75.05 | 19.15 | 86.98 | -23.02 | 114.27 | 64.24 | 246.50 | 0.9057 | 474.8 | 271.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-30 20:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.23 | 12.30 | 2.59 | 14.34 | -21.90 | 114.53 | 64.51 | 247.76 | 0.9066 | 15.3 | 413.5 | |
| 0.00 | 0.36 | 0.00 | 0.41 | -21.59 | 113.82 | 63.80 | 248.02 | 0.9015 | -253.0 | -303.8 | |
| 14.26 | 60.26 | 16.56 | 69.92 | -23.21 | 114.30 | 64.27 | 246.29 | 0.9061 | 644.9 | 248.4 | |
| 0.00 | 0.71 | 0.00 | 0.78 | -22.87 | 112.46 | 62.43 | 246.44 | 0.8930 | 496.0 | 470.9 | |
| 0.00 | 0.71 | 0.00 | 0.82 | -25.28 | 113.63 | 63.61 | 243.92 | 0.9035 | 433.0 | 338.0 | |
| 0.00 | 0.71 | 0.00 | 0.71 | -24.98 | 108.90 | 58.87 | 243.51 | 0.8690 | -404.0 | -347.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
