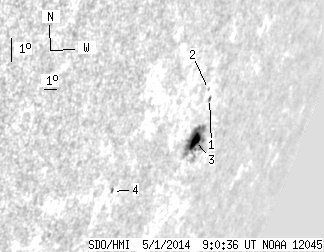

SDO HMI 2014-05-01 09:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.66 | 45.60 | 13.23 | 69.50 | -23.04 | 113.93 | 71.07 | 247.03 | 0.9467 | 466.9 | 149.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-01 09:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.54 | 1.61 | 0.81 | 2.43 | -21.71 | 113.86 | 71.00 | 248.44 | 0.9460 | 178.0 | 197.6 | |
| 0.00 | 0.62 | 0.00 | 0.93 | -21.45 | 113.46 | 70.59 | 248.69 | 0.9437 | -219.0 | -201.0 | |
| 8.12 | 42.03 | 12.42 | 64.48 | -23.06 | 114.07 | 71.21 | 247.02 | 0.9475 | 602.1 | 169.3 | |
| 0.00 | 1.34 | 0.00 | 1.66 | -25.08 | 108.78 | 65.91 | 244.40 | 0.9185 | -292.0 | -308.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
