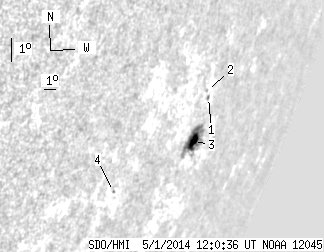

SDO HMI 2014-05-01 12:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.57 | 40.50 | 14.16 | 66.75 | -23.03 | 113.91 | 72.69 | 247.14 | 0.9548 | 421.7 | 151.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-01 12:00:36 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.45 | 1.43 | 0.73 | 2.33 | -21.66 | 113.83 | 72.60 | 248.56 | 0.9541 | 248.6 | 221.6 | |
| 0.00 | 1.07 | 0.00 | 1.71 | -21.46 | 113.46 | 72.24 | 248.76 | 0.9522 | -162.0 | -158.8 | |
| 8.12 | 37.02 | 13.43 | 61.42 | -23.08 | 114.04 | 72.82 | 247.09 | 0.9555 | 525.6 | 172.4 | |
| 0.00 | 0.98 | 0.00 | 1.29 | -25.08 | 108.64 | 67.41 | 244.57 | 0.9276 | -263.0 | -293.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
