SDO HMI 2014-05-08 02:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.81 | 141.15 | 29.06 | 174.75 | 14.85 | 249.77 | -64.40 | 72.12 | 0.9173 | -576.0 | -111.7 | |
|
previous
or next observation for the same group /

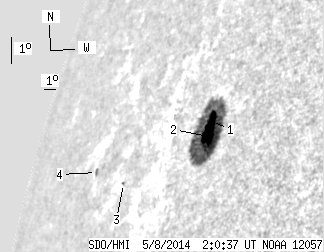

back to the solar disc SDO HMI 2014-05-08 02:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.83 | 137.75 | 13.22 | 168.62 | 15.14 | 250.09 | -64.08 | 71.76 | 0.9159 | -561.9 | -117.1 | |
| 12.98 | -1.00 | 15.84 | -1.00 | 14.67 | 250.06 | -64.11 | 72.27 | 0.9154 | -652.7 | 999999 | |
| 0.00 | 0.98 | 0.00 | 1.56 | 13.54 | 243.89 | -70.29 | 74.52 | 0.9511 | -329.0 | -320.4 | |
| 0.00 | 2.42 | 0.00 | 4.57 | 14.08 | 240.74 | -73.44 | 74.41 | 0.9664 | 205.0 | 121.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
