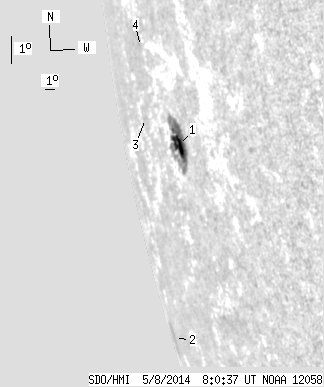

SDO HMI 2014-05-08 08:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.42 | 79.51 | 29.47 | 228.06 | -13.29 | 230.43 | -80.45 | 102.93 | 0.9816 | 375.4 | 26.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-08 08:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.42 | 63.30 | 29.47 | 130.51 | -11.60 | 234.58 | -76.30 | 101.12 | 0.9710 | 426.3 | 110.3 | |
| 0.00 | 9.58 | 0.00 | 79.51 | -17.01 | 223.48 | -87.40 | 106.86 | 0.9984 | -154.0 | -50.7 | |
| 0.00 | 2.15 | 0.00 | 6.27 | -10.52 | 230.28 | -80.61 | 100.10 | 0.9860 | -156.0 | -172.4 | |
| 0.00 | 4.48 | 0.00 | 11.77 | -8.37 | 231.46 | -79.42 | 97.88 | 0.9826 | -66.0 | -70.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
