SDO HMI 2014-05-08 12:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.45 | 166.85 | 30.03 | 171.77 | 14.83 | 249.78 | -58.92 | 70.99 | 0.8775 | -679.0 | -80.1 | |
|
previous
or next observation for the same group /

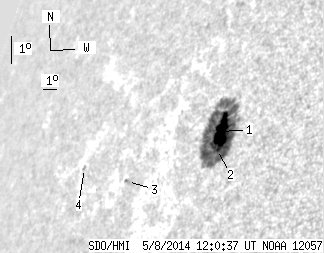

back to the solar disc SDO HMI 2014-05-08 12:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.38 | 163.09 | 28.94 | 166.88 | 14.88 | 249.98 | -58.72 | 70.89 | 0.8761 | -715.1 | -79.9 | |
| 1.07 | -1.00 | 1.09 | -1.00 | 14.31 | 249.98 | -58.71 | 71.53 | 0.8750 | -817.6 | 999999 | |
| 0.00 | 2.33 | 0.00 | 2.84 | 13.61 | 244.36 | -64.34 | 73.48 | 0.9155 | -288.0 | -280.3 | |
| 0.00 | 1.43 | 0.00 | 2.05 | 14.23 | 240.65 | -68.05 | 73.47 | 0.9393 | 127.0 | 182.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
