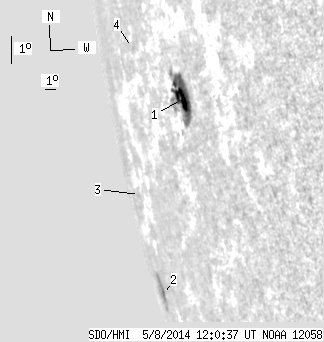

SDO HMI 2014-05-08 12:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.92 | 86.11 | 38.59 | 216.17 | -13.78 | 229.72 | -78.97 | 103.39 | 0.9765 | 188.2 | 41.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-08 12:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.41 | 66.95 | 25.54 | 119.28 | -11.63 | 234.54 | -74.15 | 101.13 | 0.9615 | 450.9 | 146.1 | |
| 2.51 | 15.40 | 13.05 | 84.80 | -17.09 | 223.31 | -85.38 | 106.87 | 0.9960 | -273.4 | -64.1 | |
| 0.00 | 1.25 | 0.00 | 5.65 | -14.01 | 224.49 | -84.20 | 103.73 | 0.9942 | -190.0 | -162.4 | |
| 0.00 | 2.51 | 0.00 | 6.44 | -9.73 | 229.37 | -79.32 | 99.26 | 0.9822 | -118.0 | -121.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
