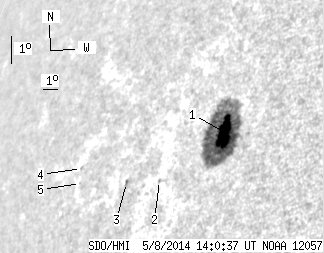

SDO HMI 2014-05-08 14:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.98 | 177.55 | 29.62 | 176.94 | 14.83 | 249.81 | -57.78 | 70.72 | 0.8683 | -670.7 | -74.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-08 14:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.98 | 173.89 | 29.62 | 172.47 | 14.86 | 249.98 | -57.61 | 70.65 | 0.8671 | -767.1 | -78.0 | |
| 0.00 | 1.07 | 0.00 | 1.17 | 13.52 | 246.54 | -61.06 | 72.93 | 0.8919 | 284.0 | 263.4 | |
| 0.00 | 1.25 | 0.00 | 1.47 | 13.58 | 244.29 | -63.31 | 73.31 | 0.9084 | -507.0 | -353.8 | |
| 0.00 | 1.07 | 0.00 | 1.47 | 14.23 | 240.56 | -67.03 | 73.30 | 0.9334 | 230.0 | 217.0 | |
| 0.00 | 0.27 | 0.00 | 0.36 | 13.75 | 240.76 | -66.83 | 73.77 | 0.9316 | 167.0 | 208.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
