SDO HMI 2014-05-08 15:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.80 | 173.42 | 29.12 | 170.32 | 14.84 | 249.77 | -57.27 | 70.58 | 0.8641 | -693.4 | -89.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-08 15:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

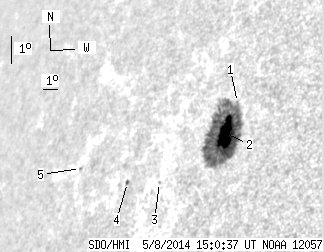

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.07 | 0.00 | 1.04 | 15.83 | 250.24 | -56.80 | 69.34 | 0.8623 | -116.0 | -114.6 | |
| 29.08 | 168.33 | 28.30 | 164.46 | 14.86 | 249.96 | -57.08 | 70.51 | 0.8627 | -795.8 | -95.0 | |
| 0.00 | 0.89 | 0.00 | 0.96 | 13.50 | 246.52 | -60.52 | 72.85 | 0.8878 | 362.0 | 300.6 | |
| 0.72 | 1.70 | 0.82 | 1.95 | 13.61 | 244.35 | -62.69 | 73.16 | 0.9040 | -347.5 | -319.5 | |
| 0.00 | 1.43 | 0.00 | 1.91 | 14.27 | 240.56 | -66.48 | 73.17 | 0.9300 | 287.0 | 232.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
