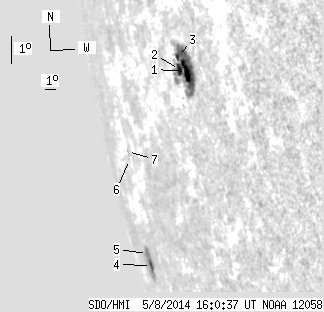

SDO HMI 2014-05-08 16:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.78 | 93.51 | 54.75 | 189.14 | -13.50 | 230.34 | -76.15 | 103.08 | 0.9660 | 203.9 | 104.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-08 16:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.38 | 74.72 | 16.11 | 117.27 | -11.64 | 234.84 | -71.65 | 101.15 | 0.9489 | 655.0 | 198.6 | |
| 5.37 | -1.00 | 8.59 | -1.00 | -11.55 | 234.19 | -72.30 | 101.04 | 0.9523 | 222.2 | 999999 | |
| 1.97 | -1.00 | 3.15 | -1.00 | -11.15 | 234.24 | -72.25 | 100.62 | 0.9521 | 105.5 | 999999 | |
| 4.38 | 17.18 | 16.59 | 66.77 | -17.06 | 223.36 | -83.13 | 106.78 | 0.9919 | -68.7 | -57.1 | |
| 2.68 | -4.00 | 10.31 | -4.00 | -16.68 | 223.27 | -83.22 | 106.39 | 0.9921 | 52.3 | 999999 | |
| 0.00 | 0.54 | 0.00 | 1.70 | -13.82 | 224.91 | -81.57 | 103.46 | 0.9884 | -400.0 | -313.0 | |
| 0.00 | 1.07 | 0.00 | 3.40 | -13.56 | 224.90 | -81.59 | 103.21 | 0.9885 | -223.0 | -251.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
