SDO HMI 2014-05-08 19:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.59 | 111.04 | 36.57 | 206.93 | -13.82 | 229.91 | -74.92 | 103.41 | 0.9605 | 287.0 | 126.2 | |
|
previous
or next observation for the same group /

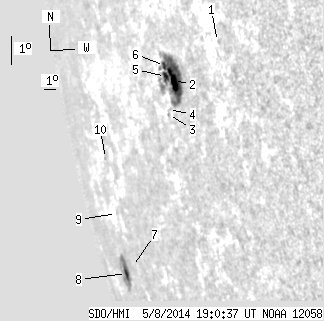

back to the solar disc SDO HMI 2014-05-08 19:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.63 | 0.00 | 0.75 | -10.69 | 239.02 | -65.81 | 100.21 | 0.9125 | 455.0 | 419.3 | |
| 10.65 | 80.80 | 15.21 | 116.33 | -11.67 | 234.88 | -69.95 | 101.20 | 0.9393 | 687.9 | 229.7 | |
| 0.00 | 1.34 | 0.00 | 2.02 | -12.67 | 233.79 | -71.03 | 102.24 | 0.9456 | 162.0 | 105.3 | |
| 0.00 | 0.63 | 0.00 | 0.94 | -12.52 | 233.89 | -70.93 | 102.08 | 0.9450 | 252.0 | 219.6 | |
| 3.67 | -2.00 | 5.39 | -2.00 | -11.51 | 234.23 | -70.60 | 101.02 | 0.9430 | 246.3 | 999999 | |
| 2.24 | -2.00 | 3.28 | -2.00 | -11.18 | 234.33 | -70.50 | 100.67 | 0.9425 | 154.5 | 999999 | |
| 0.00 | 0.98 | 0.00 | 2.70 | -16.92 | 224.72 | -80.11 | 106.59 | 0.9842 | 42.0 | 40.3 | |
| 4.03 | 25.14 | 12.69 | 80.08 | -17.05 | 223.22 | -81.61 | 106.74 | 0.9884 | -44.2 | 4.8 | |
| 0.00 | 0.54 | 0.00 | 1.48 | -15.24 | 224.57 | -80.26 | 104.88 | 0.9848 | -215.0 | -179.7 | |
| 0.00 | 0.98 | 0.00 | 2.63 | -13.54 | 225.07 | -79.76 | 103.15 | 0.9833 | -217.0 | -243.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
