SDO HMI 2014-05-09 02:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.65 | 205.60 | 29.04 | 173.07 | 14.78 | 249.71 | -51.25 | 68.96 | 0.8100 | -616.6 | -183.4 | |
|
previous
or next observation for the same group /

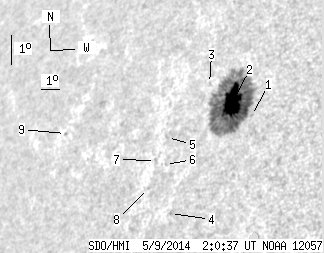

back to the solar disc SDO HMI 2014-05-09 02:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.80 | 14.34 | 250.96 | -49.99 | 69.08 | 0.7967 | -369.0 | -274.6 | |
| 34.65 | 196.56 | 29.04 | 164.93 | 14.84 | 249.87 | -51.09 | 68.84 | 0.8087 | -892.6 | -214.1 | |
| 0.00 | 1.25 | 0.00 | 1.09 | 15.48 | 248.47 | -52.48 | 68.52 | 0.8236 | 274.0 | 245.7 | |
| 0.00 | 1.07 | 0.00 | 0.93 | 11.42 | 247.73 | -53.22 | 73.54 | 0.8208 | 629.0 | 527.8 | |
| 0.00 | 1.34 | 0.00 | 1.20 | 13.85 | 246.83 | -54.12 | 70.91 | 0.8346 | 678.0 | 567.5 | |
| 0.00 | 0.90 | 0.00 | 0.79 | 12.99 | 247.01 | -53.94 | 71.87 | 0.8310 | 487.0 | 412.3 | |
| 0.00 | 1.34 | 0.00 | 1.21 | 13.14 | 246.42 | -54.53 | 71.85 | 0.8367 | 432.0 | 312.5 | |
| 0.00 | 0.99 | 0.00 | 0.88 | 12.27 | 246.32 | -54.63 | 72.89 | 0.8358 | 525.0 | 450.6 | |
| 0.00 | 1.16 | 0.00 | 1.24 | 14.29 | 240.74 | -60.21 | 71.92 | 0.8866 | 427.0 | 288.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
