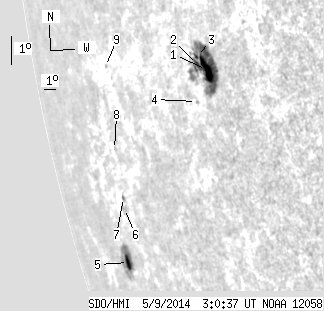

SDO HMI 2014-05-09 03:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.91 | 128.88 | 34.13 | 188.38 | -13.69 | 230.13 | -70.27 | 103.34 | 0.9367 | 427.7 | 137.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-09 03:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.87 | 92.15 | 17.58 | 109.72 | -11.66 | 235.00 | -65.40 | 101.30 | 0.9098 | 818.5 | 272.4 | |
| 2.24 | -1.00 | 2.71 | -1.00 | -11.47 | 234.40 | -66.00 | 101.08 | 0.9140 | 306.0 | 999999 | |
| 1.07 | -1.00 | 1.30 | -1.00 | -11.23 | 234.44 | -65.96 | 100.81 | 0.9137 | 269.4 | 999999 | |
| 0.00 | 0.63 | 0.00 | 0.78 | -12.58 | 233.78 | -66.63 | 102.28 | 0.9185 | 368.0 | 281.1 | |
| 5.73 | 29.11 | 12.54 | 64.33 | -17.04 | 223.09 | -77.31 | 106.73 | 0.9750 | 146.6 | -0.7 | |
| 0.00 | 3.85 | 0.00 | 7.60 | -15.42 | 224.56 | -75.84 | 105.07 | 0.9691 | -346.0 | -190.3 | |
| 0.00 | 1.61 | 0.00 | 3.15 | -15.09 | 224.80 | -75.61 | 104.73 | 0.9681 | -167.0 | -287.3 | |
| 0.00 | 0.72 | 0.00 | 1.36 | -13.61 | 225.15 | -75.26 | 103.20 | 0.9666 | -354.0 | -341.2 | |
| 0.00 | 0.81 | 0.00 | 1.44 | -11.09 | 226.14 | -74.27 | 100.58 | 0.9621 | -170.0 | -154.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
