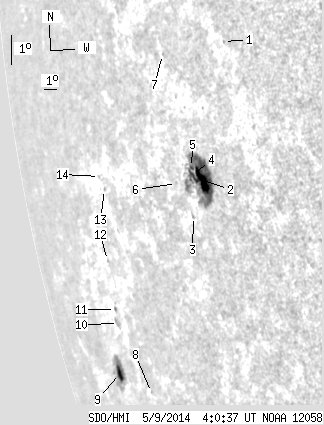

SDO HMI 2014-05-09 04:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.47 | 132.31 | 31.65 | 184.84 | -13.48 | 230.55 | -69.30 | 103.15 | 0.9312 | 346.9 | 161.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-09 04:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.63 | 0.00 | 0.66 | -7.54 | 237.91 | -61.94 | 96.77 | 0.8829 | 448.0 | 431.0 | |
| 14.06 | 94.85 | 16.29 | 110.65 | -11.66 | 235.04 | -64.81 | 101.32 | 0.9056 | 810.5 | 266.0 | |
| 0.00 | 1.25 | 0.00 | 1.52 | -12.71 | 233.86 | -65.99 | 102.44 | 0.9142 | 195.0 | 219.8 | |
| 1.25 | -2.00 | 1.48 | -2.00 | -11.44 | 234.40 | -65.45 | 101.06 | 0.9102 | 349.6 | 999999 | |
| 1.34 | -2.00 | 1.59 | -2.00 | -11.22 | 234.42 | -65.43 | 100.82 | 0.9100 | 343.9 | 999999 | |
| 0.00 | 0.81 | 0.00 | 1.01 | -11.64 | 233.07 | -66.79 | 101.25 | 0.9194 | -217.0 | -197.3 | |
| 0.00 | 0.45 | 0.00 | 0.55 | -7.71 | 233.55 | -66.31 | 96.96 | 0.9159 | 220.0 | 162.8 | |
| 0.00 | 0.90 | 0.00 | 1.56 | -17.81 | 226.12 | -73.74 | 107.59 | 0.9601 | 43.0 | 66.2 | |
| 5.82 | 25.71 | 12.29 | 54.53 | -17.03 | 222.98 | -76.87 | 106.73 | 0.9733 | 92.5 | 74.8 | |
| 0.00 | 4.57 | 0.00 | 8.70 | -15.55 | 224.64 | -75.22 | 105.21 | 0.9665 | -333.0 | -180.2 | |
| 0.00 | 1.34 | 0.00 | 2.54 | -15.11 | 224.72 | -75.13 | 104.76 | 0.9661 | -311.0 | -314.0 | |
| 0.00 | 0.54 | 0.00 | 0.99 | -13.61 | 225.20 | -74.65 | 103.20 | 0.9639 | -357.0 | -331.0 | |
| 0.00 | 0.99 | 0.00 | 1.67 | -11.48 | 226.55 | -73.31 | 100.99 | 0.9575 | -378.0 | -336.1 | |
| 0.00 | 0.27 | 0.00 | 0.46 | -11.06 | 226.28 | -73.57 | 100.55 | 0.9588 | -266.0 | -234.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
