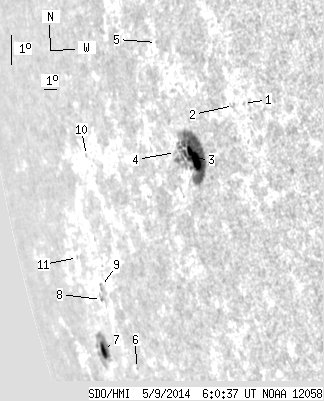

SDO HMI 2014-05-09 06:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.69 | 137.78 | 28.32 | 182.32 | -13.49 | 230.77 | -67.99 | 103.20 | 0.9228 | 381.6 | 175.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-09 06:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.07 | 0.00 | 1.06 | -10.18 | 238.86 | -59.90 | 99.85 | 0.8663 | 483.0 | 412.4 | |
| 0.00 | 1.79 | 0.00 | 1.80 | -10.21 | 238.22 | -60.53 | 99.85 | 0.8717 | 475.0 | 348.2 | |
| 14.51 | 98.18 | 16.15 | 109.91 | -11.68 | 235.08 | -63.68 | 101.40 | 0.8972 | 805.5 | 283.9 | |
| 0.00 | 0.81 | 0.00 | 0.94 | -11.43 | 233.82 | -64.94 | 101.07 | 0.9065 | -358.0 | -328.4 | |
| 0.00 | 1.61 | 0.00 | 1.88 | -8.04 | 233.69 | -65.07 | 97.33 | 0.9070 | 134.0 | 141.7 | |
| 0.00 | 0.72 | 0.00 | 1.18 | -17.77 | 226.06 | -72.70 | 107.59 | 0.9551 | 112.0 | 119.5 | |
| 6.18 | 29.38 | 12.17 | 58.07 | -17.03 | 222.97 | -75.78 | 106.74 | 0.9690 | 132.3 | 35.9 | |
| 0.00 | 0.99 | 0.00 | 1.77 | -15.50 | 224.43 | -74.33 | 105.18 | 0.9625 | -141.0 | -123.5 | |
| 0.00 | 2.69 | 0.00 | 4.74 | -15.11 | 224.81 | -73.95 | 104.78 | 0.9608 | -422.0 | -387.4 | |
| 0.00 | 0.27 | 0.00 | 0.44 | -11.12 | 226.31 | -72.44 | 100.62 | 0.9532 | -286.0 | -227.3 | |
| 0.00 | 0.27 | 0.00 | 0.53 | -14.10 | 222.87 | -75.88 | 103.71 | 0.9693 | -377.0 | -353.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
