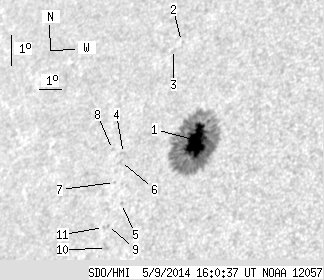

SDO HMI 2014-05-09 16:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39.30 | 233.48 | 28.40 | 169.30 | 14.82 | 249.64 | -43.63 | 66.10 | 0.7319 | -577.2 | -201.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-09 16:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39.30 | 222.56 | 28.40 | 160.99 | 14.86 | 249.79 | -43.48 | 65.99 | 0.7304 | -957.0 | -242.3 | |
| 0.00 | 0.54 | 0.00 | 0.41 | 18.10 | 248.19 | -45.08 | 62.62 | 0.7603 | 472.0 | 432.0 | |
| 0.00 | 0.98 | 0.00 | 0.75 | 17.85 | 247.91 | -45.36 | 63.05 | 0.7621 | 385.0 | 362.6 | |
| 0.00 | 2.42 | 0.00 | 1.85 | 14.58 | 246.61 | -46.65 | 67.64 | 0.7633 | 606.0 | 499.1 | |
| 0.00 | 1.07 | 0.00 | 0.81 | 12.99 | 246.93 | -46.33 | 69.54 | 0.7546 | 610.0 | 484.1 | |
| 0.00 | 1.70 | 0.00 | 1.30 | 14.33 | 246.54 | -46.72 | 67.98 | 0.7631 | 585.0 | 508.6 | |
| 0.00 | 0.90 | 0.00 | 0.68 | 13.68 | 246.44 | -46.82 | 68.85 | 0.7620 | 369.0 | 293.3 | |
| 0.00 | 0.54 | 0.00 | 0.41 | 14.74 | 246.06 | -47.20 | 67.66 | 0.7695 | 200.0 | 190.7 | |
| 0.00 | 1.07 | 0.00 | 0.81 | 12.32 | 246.46 | -46.81 | 70.56 | 0.7576 | 645.0 | 511.6 | |
| 0.00 | 1.07 | 0.00 | 0.81 | 11.60 | 246.58 | -46.69 | 71.45 | 0.7542 | 722.0 | 623.2 | |
| 0.00 | 0.63 | 0.00 | 0.48 | 12.27 | 246.29 | -46.98 | 70.69 | 0.7593 | 421.0 | 352.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
