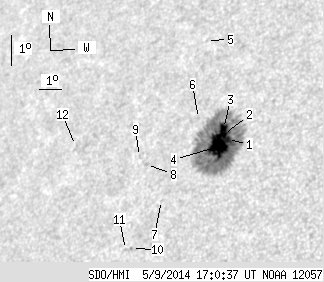

SDO HMI 2014-05-09 17:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.52 | 237.68 | 30.44 | 170.60 | 14.77 | 249.70 | -43.01 | 65.89 | 0.7249 | -670.3 | -205.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-09 17:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.31 | 230.43 | 2.36 | 165.14 | 14.89 | 250.09 | -42.63 | 65.57 | 0.7211 | -1121.1 | -233.5 | |
| 4.12 | -1.00 | 2.95 | -1.00 | 15.06 | 249.88 | -42.84 | 65.45 | 0.7242 | -1002.0 | 999999 | |
| 5.37 | -1.00 | 3.85 | -1.00 | 15.25 | 249.83 | -42.89 | 65.22 | 0.7255 | -786.8 | 999999 | |
| 29.72 | -1.00 | 21.28 | -1.00 | 14.68 | 249.75 | -42.96 | 65.99 | 0.7240 | -999.1 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.20 | 18.14 | 248.25 | -44.46 | 62.28 | 0.7542 | 506.0 | 443.3 | |
| 0.00 | 0.90 | 0.00 | 0.66 | 15.62 | 248.65 | -44.07 | 65.28 | 0.7397 | 284.0 | 255.6 | |
| 0.00 | 0.72 | 0.00 | 0.53 | 13.07 | 247.66 | -45.05 | 68.97 | 0.7410 | 573.0 | 486.6 | |
| 0.00 | 1.43 | 0.00 | 1.08 | 14.24 | 246.70 | -46.02 | 67.83 | 0.7554 | 682.0 | 585.5 | |
| 0.00 | 1.25 | 0.00 | 0.95 | 14.51 | 246.31 | -46.41 | 67.64 | 0.7604 | 425.0 | 383.0 | |
| 0.00 | 1.07 | 0.00 | 0.80 | 11.60 | 246.65 | -46.06 | 71.23 | 0.7473 | 686.0 | 660.0 | |
| 0.00 | 1.07 | 0.00 | 0.80 | 11.58 | 246.39 | -46.33 | 71.34 | 0.7501 | 573.0 | 523.8 | |
| 0.00 | 0.54 | 0.00 | 0.44 | 15.00 | 243.16 | -49.56 | 68.18 | 0.7941 | 396.0 | 414.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
