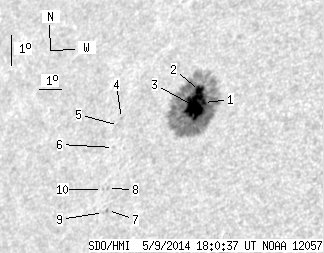

SDO HMI 2014-05-09 18:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.43 | 231.60 | 30.81 | 164.71 | 14.79 | 249.68 | -42.48 | 65.64 | 0.7191 | -700.9 | -222.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-09 18:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.78 | 225.24 | 1.96 | 159.98 | 14.87 | 250.09 | -42.07 | 65.34 | 0.7149 | -1137.6 | -250.0 | |
| 6.36 | -1.00 | 4.52 | -1.00 | 15.26 | 249.83 | -42.33 | 64.95 | 0.7195 | -794.7 | 999999 | |
| 34.29 | -1.00 | 24.33 | -1.00 | 14.76 | 249.74 | -42.42 | 65.65 | 0.7183 | -1011.6 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.67 | 14.51 | 246.61 | -45.55 | 67.31 | 0.7513 | 580.0 | 518.5 | |
| 0.00 | 1.52 | 0.00 | 1.14 | 14.29 | 246.54 | -45.62 | 67.62 | 0.7514 | 614.0 | 605.5 | |
| 0.00 | 0.27 | 0.00 | 0.20 | 13.60 | 246.49 | -45.67 | 68.52 | 0.7495 | 406.0 | 425.3 | |
| 0.00 | 1.34 | 0.00 | 0.99 | 11.61 | 246.67 | -45.49 | 71.01 | 0.7410 | 735.0 | 673.6 | |
| 0.00 | 1.43 | 0.00 | 1.06 | 12.31 | 246.52 | -45.64 | 70.16 | 0.7448 | 666.0 | 478.5 | |
| 0.00 | 0.27 | 0.00 | 0.20 | 11.56 | 246.51 | -45.65 | 71.14 | 0.7426 | 586.0 | 576.3 | |
| 0.00 | 0.63 | 0.00 | 0.47 | 12.29 | 246.31 | -45.85 | 70.27 | 0.7471 | 347.0 | 307.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
