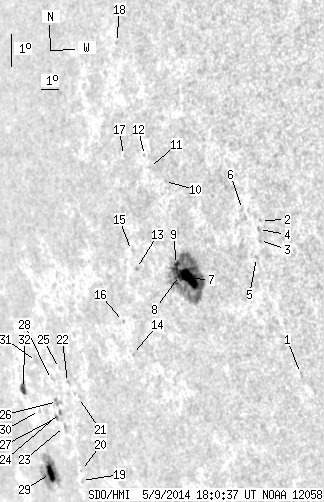

SDO HMI 2014-05-09 18:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.88 | 201.49 | 35.70 | 213.68 | -13.52 | 230.19 | -61.97 | 103.54 | 0.8797 | 333.4 | 169.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-09 18:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.65 | -14.82 | 240.23 | -51.93 | 106.21 | 0.7948 | 511.0 | 375.6 | |
| 0.00 | 1.07 | 0.00 | 0.88 | -10.07 | 239.56 | -52.60 | 100.17 | 0.7969 | 598.0 | 527.4 | |
| 0.00 | 0.90 | 0.00 | 0.73 | -10.67 | 239.36 | -52.80 | 100.91 | 0.7994 | 597.0 | 479.8 | |
| 0.00 | 2.33 | 0.00 | 1.91 | -10.34 | 239.39 | -52.77 | 100.49 | 0.7988 | 612.0 | 533.8 | |
| 0.00 | 1.61 | 0.00 | 1.33 | -11.18 | 239.07 | -53.09 | 101.52 | 0.8027 | 481.0 | 366.1 | |
| 0.00 | 0.81 | 0.00 | 0.67 | -9.69 | 238.72 | -53.44 | 99.64 | 0.8053 | 180.0 | 204.9 | |
| 15.31 | 122.20 | 13.90 | 111.31 | -11.65 | 235.25 | -56.91 | 101.77 | 0.8403 | 954.8 | 313.7 | |
| 1.43 | -7.00 | 1.32 | -7.00 | -11.53 | 234.77 | -57.39 | 101.60 | 0.8446 | 528.9 | 999999 | |
| 1.34 | -7.00 | 1.24 | -7.00 | -11.19 | 234.71 | -57.45 | 101.19 | 0.8450 | 498.4 | 999999 | |
| 0.00 | 0.36 | 0.00 | 0.33 | -8.65 | 234.73 | -57.43 | 98.17 | 0.8438 | 367.0 | 298.5 | |
| 0.00 | 0.63 | 0.00 | 0.59 | -8.18 | 233.97 | -58.19 | 97.60 | 0.8507 | 381.0 | 346.4 | |
| 0.00 | 0.81 | 0.00 | 0.76 | -7.81 | 233.76 | -58.40 | 97.15 | 0.8525 | 136.0 | 135.7 | |
| 0.00 | 1.25 | 0.00 | 1.23 | -11.20 | 232.32 | -59.84 | 101.05 | 0.8662 | -244.0 | -202.4 | |
| 0.00 | 0.72 | 0.00 | 0.74 | -13.79 | 231.03 | -61.13 | 103.94 | 0.8782 | 502.0 | 455.6 | |
| 0.00 | 0.63 | 0.00 | 0.62 | -10.64 | 232.19 | -59.97 | 100.40 | 0.8670 | 283.0 | 251.6 | |
| 0.00 | 0.81 | 0.00 | 0.83 | -12.76 | 230.89 | -61.27 | 102.76 | 0.8788 | 217.0 | 195.9 | |
| 0.00 | 0.72 | 0.00 | 0.70 | -7.74 | 232.52 | -59.64 | 97.06 | 0.8635 | -281.0 | -282.5 | |
| 0.00 | 0.98 | 0.00 | 0.96 | -4.31 | 232.73 | -59.43 | 93.07 | 0.8619 | 358.0 | 325.9 | |
| 0.00 | 0.45 | 0.00 | 0.57 | -17.45 | 225.20 | -66.96 | 107.57 | 0.9225 | 370.0 | 300.2 | |
| 0.00 | 0.27 | 0.00 | 0.34 | -17.14 | 225.43 | -66.74 | 107.25 | 0.9209 | 331.0 | 388.7 | |
| 0.00 | 0.36 | 0.00 | 0.43 | -14.91 | 226.66 | -65.50 | 104.90 | 0.9117 | 209.0 | 210.5 | |
| 0.00 | 0.81 | 0.00 | 0.98 | -14.41 | 226.10 | -66.06 | 104.32 | 0.9153 | 384.0 | 270.7 | |
| 0.00 | 0.90 | 0.00 | 1.14 | -15.74 | 225.03 | -67.13 | 105.70 | 0.9229 | -419.0 | -287.4 | |
| 0.81 | 2.06 | 1.03 | 2.63 | -15.29 | 225.00 | -67.16 | 105.22 | 0.9230 | -608.9 | -528.4 | |
| 0.00 | 0.27 | 0.00 | 0.33 | -13.96 | 225.74 | -66.42 | 103.81 | 0.9176 | -348.0 | -220.7 | |
| 0.00 | 3.94 | 0.00 | 5.02 | -14.95 | 224.98 | -67.18 | 104.85 | 0.9230 | -604.0 | -541.9 | |
| 0.63 | 1.97 | 0.81 | 2.55 | -15.43 | 224.57 | -67.59 | 105.35 | 0.9257 | -327.4 | -254.3 | |
| 0.00 | 0.72 | 0.00 | 0.91 | -14.26 | 224.92 | -67.24 | 104.10 | 0.9231 | 102.0 | 119.1 | |
| 8.15 | 43.96 | 11.41 | 61.81 | -17.10 | 222.80 | -69.36 | 107.05 | 0.9371 | 398.0 | 43.3 | |
| 0.00 | 0.81 | 0.00 | 1.10 | -15.14 | 223.32 | -68.84 | 104.98 | 0.9334 | -528.0 | -440.6 | |
| 0.00 | 1.97 | 0.00 | 2.60 | -13.65 | 224.05 | -68.11 | 103.41 | 0.9286 | -192.0 | -186.7 | |
| 4.21 | 6.36 | 5.99 | 9.03 | -14.41 | 222.40 | -69.76 | 104.16 | 0.9387 | -334.0 | -262.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
