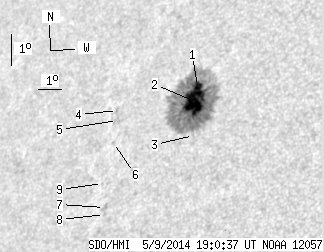

SDO HMI 2014-05-09 19:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39.57 | 242.52 | 27.84 | 171.12 | 14.77 | 249.61 | -42.00 | 65.43 | 0.7137 | -706.7 | -224.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-09 19:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.64 | 230.08 | 3.98 | 161.99 | 15.27 | 249.78 | -41.83 | 64.70 | 0.7139 | -798.6 | -271.7 | |
| 33.93 | -1.00 | 23.86 | -1.00 | 14.79 | 249.77 | -41.84 | 65.34 | 0.7120 | -1026.5 | 999999 | |
| 0.00 | 0.90 | 0.00 | 0.62 | 13.71 | 249.97 | -41.64 | 66.69 | 0.7052 | -195.0 | -186.0 | |
| 0.00 | 1.88 | 0.00 | 1.40 | 14.65 | 246.47 | -45.14 | 66.97 | 0.7474 | 505.0 | 447.6 | |
| 0.00 | 3.94 | 0.00 | 2.92 | 14.33 | 246.55 | -45.05 | 67.35 | 0.7454 | 743.0 | 524.9 | |
| 0.00 | 0.98 | 0.00 | 0.73 | 13.63 | 246.55 | -45.06 | 68.24 | 0.7430 | 388.0 | 333.4 | |
| 0.00 | 3.22 | 0.00 | 2.35 | 11.59 | 246.61 | -45.00 | 70.87 | 0.7354 | 675.0 | 633.2 | |
| 0.00 | 1.25 | 0.00 | 0.91 | 11.37 | 246.65 | -44.95 | 71.15 | 0.7342 | 579.0 | 507.5 | |
| 0.00 | 0.27 | 0.00 | 0.20 | 12.35 | 246.36 | -45.25 | 69.97 | 0.7407 | 356.0 | 331.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
