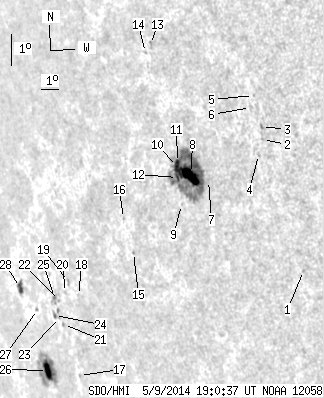

SDO HMI 2014-05-09 19:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.98 | 207.41 | 40.14 | 216.87 | -13.59 | 230.06 | -61.55 | 103.64 | 0.8763 | 369.6 | 159.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-09 19:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.07 | 0.00 | 0.86 | -14.79 | 240.29 | -51.32 | 106.27 | 0.7885 | 370.0 | 328.8 | |
| 0.00 | 1.16 | 0.00 | 0.94 | -10.70 | 239.41 | -52.20 | 101.00 | 0.7932 | 594.0 | 423.5 | |
| 0.00 | 1.43 | 0.00 | 1.16 | -10.31 | 239.45 | -52.15 | 100.51 | 0.7924 | 636.0 | 579.0 | |
| 0.00 | 1.52 | 0.00 | 1.24 | -11.15 | 239.09 | -52.51 | 101.53 | 0.7968 | 364.0 | 344.2 | |
| 0.00 | 0.98 | 0.00 | 0.80 | -9.35 | 239.27 | -52.34 | 99.28 | 0.7937 | 525.0 | 407.9 | |
| 0.00 | 2.24 | 0.00 | 1.82 | -9.71 | 239.04 | -52.57 | 99.72 | 0.7963 | 558.0 | 415.2 | |
| 0.00 | 1.43 | 0.00 | 1.25 | -11.82 | 236.26 | -55.34 | 102.10 | 0.8256 | 85.0 | 117.6 | |
| 15.49 | 121.75 | 13.85 | 109.27 | -11.65 | 235.32 | -56.29 | 101.82 | 0.8345 | 991.4 | 319.2 | |
| 0.00 | 0.63 | 0.00 | 0.57 | -12.48 | 234.53 | -57.07 | 102.74 | 0.8423 | 339.0 | 245.0 | |
| 2.95 | -8.00 | 2.68 | -8.00 | -11.31 | 234.69 | -56.92 | 101.37 | 0.8402 | 424.9 | 999999 | |
| 2.15 | -8.00 | 1.95 | -8.00 | -11.19 | 234.73 | -56.88 | 101.23 | 0.8397 | 479.6 | 999999 | |
| 1.52 | -8.00 | 1.39 | -8.00 | -11.65 | 234.58 | -57.02 | 101.76 | 0.8413 | 358.9 | 999999 | |
| 0.00 | 2.06 | 0.00 | 1.89 | -7.55 | 234.13 | -57.47 | 96.87 | 0.8440 | 511.0 | 382.7 | |
| 0.00 | 0.81 | 0.00 | 0.75 | -7.78 | 233.80 | -57.81 | 97.13 | 0.8471 | 241.0 | 216.8 | |
| 0.00 | 1.07 | 0.00 | 1.08 | -13.80 | 231.12 | -60.49 | 104.00 | 0.8730 | 405.0 | 383.2 | |
| 0.00 | 0.98 | 0.00 | 1.00 | -12.73 | 230.93 | -60.68 | 102.77 | 0.8740 | 304.0 | 219.9 | |
| 0.00 | 0.90 | 0.00 | 1.11 | -17.36 | 225.27 | -66.33 | 107.52 | 0.9184 | 326.0 | 306.9 | |
| 0.00 | 0.27 | 0.00 | 0.31 | -14.92 | 226.77 | -64.83 | 104.95 | 0.9070 | 230.0 | 235.3 | |
| 0.00 | 2.42 | 0.00 | 2.87 | -14.46 | 226.29 | -65.32 | 104.41 | 0.9102 | 282.0 | 181.7 | |
| 0.00 | 1.16 | 0.00 | 1.40 | -14.78 | 225.87 | -65.73 | 104.74 | 0.9132 | -406.0 | -399.4 | |
| 0.00 | 1.07 | 0.00 | 1.33 | -15.74 | 225.11 | -66.49 | 105.75 | 0.9187 | -327.0 | -329.7 | |
| 0.00 | 0.81 | 0.00 | 0.99 | -15.00 | 225.27 | -66.34 | 104.95 | 0.9174 | -578.0 | -547.2 | |
| 0.00 | 0.98 | 0.00 | 1.23 | -15.51 | 224.94 | -66.66 | 105.49 | 0.9198 | -329.0 | -367.6 | |
| 0.72 | 4.48 | 0.91 | 5.64 | -15.43 | 224.59 | -67.01 | 105.38 | 0.9220 | -381.4 | -420.5 | |
| 0.63 | 4.21 | 0.78 | 5.25 | -14.89 | 224.94 | -66.66 | 104.81 | 0.9195 | -524.9 | -497.0 | |
| 9.04 | 45.03 | 12.37 | 61.78 | -17.07 | 222.80 | -68.80 | 107.05 | 0.9338 | 414.9 | 41.0 | |
| 0.00 | 1.52 | 0.00 | 2.03 | -15.18 | 223.34 | -68.26 | 105.05 | 0.9299 | -330.0 | -382.0 | |
| 4.48 | 7.43 | 6.21 | 10.30 | -14.44 | 222.37 | -69.24 | 104.21 | 0.9357 | -362.4 | -236.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
