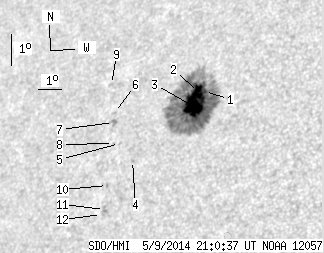

SDO HMI 2014-05-09 21:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.24 | 248.02 | 29.90 | 172.15 | 14.75 | 249.57 | -40.93 | 64.96 | 0.7016 | -672.1 | -209.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-09 21:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.27 | 233.60 | 0.19 | 161.73 | 15.16 | 250.07 | -40.43 | 64.17 | 0.6977 | -860.3 | -266.8 | |
| 12.71 | -1.00 | 8.79 | -1.00 | 15.14 | 249.82 | -40.67 | 64.32 | 0.7004 | -945.2 | 999999 | |
| 30.26 | -1.00 | 20.92 | -1.00 | 14.70 | 249.72 | -40.78 | 64.96 | 0.6996 | -1064.3 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.76 | 13.08 | 247.51 | -42.98 | 68.12 | 0.7179 | 662.0 | 603.8 | |
| 0.00 | 0.90 | 0.00 | 0.64 | 13.64 | 246.83 | -43.67 | 67.67 | 0.7277 | 549.0 | 475.2 | |
| 0.00 | 0.63 | 0.00 | 0.46 | 14.64 | 246.37 | -44.13 | 66.56 | 0.7365 | 616.0 | 494.6 | |
| 0.00 | 4.12 | 0.00 | 3.00 | 14.33 | 246.40 | -44.09 | 66.96 | 0.7349 | 671.0 | 570.1 | |
| 0.00 | 0.81 | 0.00 | 0.58 | 13.65 | 246.57 | -43.93 | 67.76 | 0.7307 | 422.0 | 348.0 | |
| 0.00 | 1.70 | 0.00 | 1.26 | 15.55 | 246.00 | -44.50 | 65.56 | 0.7440 | 159.0 | 241.3 | |
| 0.00 | 1.16 | 0.00 | 0.84 | 12.33 | 246.60 | -43.90 | 69.49 | 0.7255 | 470.0 | 459.4 | |
| 0.00 | 3.22 | 0.00 | 2.30 | 11.58 | 246.62 | -43.87 | 70.48 | 0.7227 | 726.0 | 615.3 | |
| 0.00 | 0.81 | 0.00 | 0.58 | 11.43 | 246.52 | -43.97 | 70.72 | 0.7233 | 505.0 | 557.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
