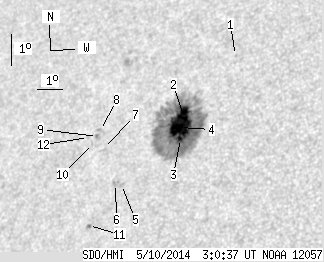

SDO HMI 2014-05-10 03:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 48.47 | 263.33 | 31.97 | 174.15 | 14.78 | 249.52 | -37.66 | 63.24 | 0.6640 | -695.9 | -223.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-10 03:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.36 | 0.00 | 0.23 | 16.97 | 251.38 | -35.80 | 59.07 | 0.6545 | -639.0 | -465.5 | |
| 17.83 | 247.74 | 11.77 | 163.50 | 15.11 | 249.73 | -37.45 | 62.66 | 0.6632 | -951.1 | -284.0 | |
| 4.21 | -2.00 | 2.77 | -2.00 | 14.38 | 249.76 | -37.42 | 63.66 | 0.6591 | -1200.1 | 999999 | |
| 26.07 | -2.00 | 17.19 | -2.00 | 14.73 | 249.65 | -37.53 | 63.23 | 0.6622 | -1079.1 | 999999 | |
| 0.00 | 1.88 | 0.00 | 1.26 | 13.01 | 247.67 | -39.51 | 66.69 | 0.6773 | 777.0 | 588.7 | |
| 0.00 | 3.40 | 0.00 | 2.30 | 13.05 | 247.42 | -39.76 | 66.75 | 0.6804 | 657.0 | 604.5 | |
| 0.00 | 0.54 | 0.00 | 0.37 | 14.18 | 246.70 | -40.48 | 65.55 | 0.6938 | 616.0 | 625.5 | |
| 0.00 | 2.96 | 0.00 | 2.04 | 14.76 | 246.45 | -40.74 | 64.89 | 0.6992 | 658.0 | 565.9 | |
| 0.00 | 2.42 | 0.00 | 1.67 | 14.57 | 246.36 | -40.82 | 65.18 | 0.6993 | 708.0 | 634.1 | |
| 0.00 | 0.81 | 0.00 | 0.56 | 14.36 | 246.20 | -40.98 | 65.55 | 0.7002 | 485.0 | 473.4 | |
| 0.36 | 1.79 | 0.24 | 1.22 | 11.76 | 246.56 | -40.62 | 68.94 | 0.6853 | 713.8 | 622.8 | |
| 0.00 | 1.43 | 0.00 | 1.00 | 14.56 | 245.99 | -41.19 | 65.39 | 0.7034 | 410.0 | 361.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
