SDO HMI 2014-05-10 04:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.19 | 266.93 | 28.28 | 175.18 | 14.79 | 249.50 | -37.14 | 62.92 | 0.6578 | -704.5 | -251.2 | |
|
previous
or next observation for the same group /

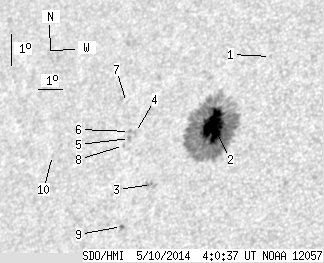

back to the solar disc SDO HMI 2014-05-10 04:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.81 | 0.00 | 0.52 | 16.99 | 251.45 | -35.18 | 58.64 | 0.6476 | -536.0 | -474.7 | |
| 42.74 | 251.34 | 27.98 | 164.62 | 14.85 | 249.67 | -36.97 | 62.75 | 0.6561 | -1066.0 | -305.0 | |
| 0.00 | 5.82 | 0.00 | 3.89 | 13.06 | 247.55 | -39.08 | 66.41 | 0.6724 | 789.0 | 621.8 | |
| 0.00 | 1.08 | 0.00 | 0.74 | 14.74 | 246.56 | -40.07 | 64.59 | 0.6916 | 667.0 | 529.6 | |
| 0.00 | 2.06 | 0.00 | 1.41 | 14.56 | 246.35 | -40.28 | 64.94 | 0.6931 | 721.0 | 639.7 | |
| 0.00 | 1.79 | 0.00 | 1.23 | 14.78 | 246.30 | -40.33 | 64.66 | 0.6947 | 576.0 | 464.6 | |
| 0.00 | 0.72 | 0.00 | 0.50 | 15.72 | 245.96 | -40.67 | 63.59 | 0.7028 | 455.0 | 357.6 | |
| 0.00 | 1.16 | 0.00 | 0.80 | 14.35 | 246.15 | -40.48 | 65.33 | 0.6944 | 539.0 | 437.0 | |
| 0.45 | 1.52 | 0.30 | 1.02 | 11.78 | 246.57 | -40.06 | 68.67 | 0.6786 | 733.0 | 631.9 | |
| 0.00 | 0.63 | 0.00 | 0.45 | 14.15 | 243.20 | -43.43 | 66.95 | 0.7268 | -604.0 | -537.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
