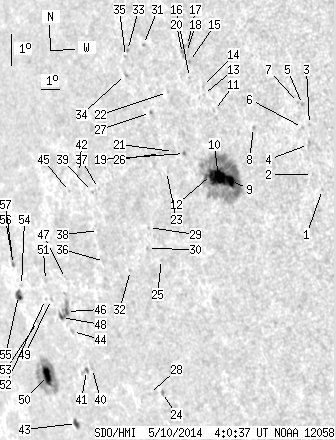

SDO HMI 2014-05-10 04:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 52.95 | 293.56 | 49.47 | 266.99 | -13.40 | 230.01 | -56.62 | 103.84 | 0.8344 | 277.9 | 133.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-10 04:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.65 | -12.11 | 239.93 | -46.70 | 103.56 | 0.7343 | 187.0 | 250.3 | |
| 0.00 | 0.63 | 0.00 | 0.46 | -11.63 | 239.58 | -47.05 | 102.86 | 0.7377 | 427.0 | 347.7 | |
| 0.00 | 0.90 | 0.00 | 0.65 | -10.10 | 239.77 | -46.87 | 100.82 | 0.7337 | 576.0 | 525.5 | |
| 0.00 | 1.97 | 0.00 | 1.44 | -10.71 | 239.60 | -47.03 | 101.62 | 0.7363 | 610.0 | 559.7 | |
| 0.00 | 1.16 | 0.00 | 0.85 | -9.48 | 239.56 | -47.07 | 99.95 | 0.7355 | 653.0 | 592.7 | |
| 0.00 | 0.90 | 0.00 | 0.65 | -10.18 | 239.43 | -47.20 | 100.88 | 0.7377 | 636.0 | 547.1 | |
| 0.00 | 1.16 | 0.00 | 0.85 | -9.42 | 239.40 | -47.24 | 99.84 | 0.7374 | 587.0 | 495.5 | |
| 0.00 | 1.52 | 0.00 | 1.16 | -10.09 | 237.17 | -49.46 | 100.51 | 0.7632 | 662.0 | 532.4 | |
| 8.96 | 146.77 | 7.08 | 116.95 | -11.65 | 235.69 | -50.94 | 102.38 | 0.7808 | 1051.0 | 288.5 | |
| 17.29 | -9.00 | 13.81 | -9.00 | -11.56 | 235.12 | -51.51 | 102.20 | 0.7868 | 867.8 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.21 | -9.49 | 235.41 | -51.22 | 99.58 | 0.7820 | 216.0 | 288.7 | |
| 3.67 | -9.00 | 2.96 | -9.00 | -11.43 | 234.81 | -51.82 | 101.99 | 0.7900 | 545.6 | 999999 | |
| 0.00 | 0.99 | 0.00 | 0.79 | -8.98 | 234.97 | -51.66 | 98.90 | 0.7864 | 511.0 | 376.0 | |
| 0.00 | 0.81 | 0.00 | 0.64 | -8.74 | 234.97 | -51.66 | 98.59 | 0.7863 | 502.0 | 398.7 | |
| 0.00 | 1.34 | 0.00 | 1.08 | -7.95 | 234.47 | -52.16 | 97.57 | 0.7912 | 609.0 | 528.8 | |
| 0.00 | 0.81 | 0.00 | 0.65 | -8.43 | 234.38 | -52.25 | 98.18 | 0.7924 | 419.0 | 363.2 | |
| 0.00 | 4.48 | 0.00 | 3.61 | -7.46 | 234.46 | -52.17 | 96.95 | 0.7912 | 646.0 | 375.7 | |
| 0.00 | 0.90 | 0.00 | 0.72 | -7.67 | 234.37 | -52.26 | 97.21 | 0.7922 | 476.0 | 508.2 | |
| 0.00 | 1.43 | 0.00 | 1.18 | -10.73 | 233.61 | -53.02 | 101.00 | 0.8018 | 360.0 | 370.1 | |
| 0.00 | 2.78 | 0.00 | 2.25 | -7.69 | 234.17 | -52.46 | 97.23 | 0.7943 | 362.0 | 331.8 | |
| 0.00 | 1.25 | 0.00 | 1.05 | -10.64 | 233.06 | -53.57 | 100.85 | 0.8073 | -256.0 | -214.8 | |
| 0.00 | 0.72 | 0.00 | 0.60 | -8.84 | 233.18 | -53.45 | 98.62 | 0.8051 | 471.0 | 336.6 | |
| 0.00 | 0.45 | 0.00 | 0.38 | -11.23 | 232.54 | -54.09 | 101.53 | 0.8130 | 458.0 | 469.6 | |
| 0.45 | 1.97 | 0.41 | 1.82 | -17.99 | 229.72 | -56.91 | 109.30 | 0.8464 | 516.4 | 410.5 | |
| 0.00 | 0.81 | 0.00 | 0.71 | -13.90 | 231.42 | -55.21 | 104.67 | 0.8262 | 567.0 | 459.4 | |
| 0.00 | 1.61 | 0.00 | 1.37 | -10.67 | 232.37 | -54.26 | 100.83 | 0.8143 | -350.0 | -358.2 | |
| 0.00 | 1.25 | 0.00 | 1.07 | -9.40 | 232.16 | -54.47 | 99.26 | 0.8157 | 344.0 | 326.4 | |
| 0.00 | 0.99 | 0.00 | 0.93 | -17.98 | 228.95 | -57.68 | 109.18 | 0.8531 | -150.0 | -125.8 | |
| 0.00 | 0.72 | 0.00 | 0.63 | -12.89 | 231.05 | -55.58 | 103.41 | 0.8288 | 438.0 | 390.6 | |
| 0.00 | 1.08 | 0.00 | 0.95 | -13.53 | 230.77 | -55.86 | 104.15 | 0.8320 | 319.0 | 278.8 | |
| 0.00 | 1.08 | 0.00 | 0.91 | -7.33 | 232.22 | -54.41 | 96.71 | 0.8143 | -597.0 | -482.8 | |
| 0.00 | 1.25 | 0.00 | 1.15 | -14.16 | 229.57 | -57.06 | 104.77 | 0.8436 | 211.0 | 218.4 | |
| 0.00 | 1.08 | 0.00 | 0.93 | -7.47 | 231.34 | -55.29 | 96.86 | 0.8231 | -624.0 | -578.0 | |
| 0.00 | 1.97 | 0.00 | 1.72 | -8.19 | 231.09 | -55.55 | 97.73 | 0.8258 | -542.0 | -402.9 | |
| 0.00 | 0.81 | 0.00 | 0.70 | -7.65 | 231.20 | -55.43 | 97.07 | 0.8246 | -443.0 | -391.3 | |
| 0.00 | 2.42 | 0.00 | 2.30 | -13.81 | 228.18 | -58.45 | 104.22 | 0.8558 | -31.0 | -103.1 | |
| 0.00 | 0.63 | 0.00 | 0.59 | -11.57 | 228.65 | -57.99 | 101.64 | 0.8502 | -506.0 | -448.1 | |
| 0.00 | 1.25 | 0.00 | 1.19 | -12.85 | 228.19 | -58.44 | 103.10 | 0.8550 | -237.0 | -263.7 | |
| 0.00 | 1.08 | 0.00 | 1.02 | -11.65 | 228.27 | -58.36 | 101.70 | 0.8536 | -552.0 | -452.1 | |
| 0.00 | 1.16 | 0.00 | 1.20 | -17.05 | 225.88 | -60.75 | 107.71 | 0.8776 | 236.0 | 332.9 | |
| 0.99 | 4.39 | 1.02 | 4.57 | -17.09 | 225.46 | -61.17 | 107.72 | 0.8810 | 502.4 | 322.0 | |
| 0.00 | 3.85 | 0.00 | 3.70 | -11.04 | 227.69 | -58.94 | 100.95 | 0.8584 | -282.0 | -343.3 | |
| 2.96 | 4.84 | 3.26 | 5.33 | -18.69 | 223.80 | -62.83 | 109.33 | 0.8950 | -450.1 | -295.5 | |
| 0.00 | 1.79 | 0.00 | 1.87 | -15.85 | 225.21 | -61.42 | 106.29 | 0.8820 | -357.0 | -235.2 | |
| 0.00 | 0.99 | 0.00 | 0.97 | -11.58 | 226.90 | -59.74 | 101.54 | 0.8656 | -271.0 | -211.4 | |
| 2.06 | 13.53 | 2.15 | 14.17 | -15.22 | 225.14 | -61.49 | 105.57 | 0.8821 | -675.5 | -477.3 | |
| 0.00 | 1.16 | 0.00 | 1.20 | -14.21 | 225.57 | -61.07 | 104.46 | 0.8781 | 355.0 | 312.8 | |
| 1.34 | -46.00 | 1.42 | -46.00 | -15.39 | 224.72 | -61.91 | 105.72 | 0.8855 | -368.8 | 999999 | |
| 0.00 | 0.99 | 0.00 | 1.05 | -14.81 | 224.34 | -62.29 | 105.03 | 0.8881 | -602.0 | -513.3 | |
| 10.21 | 54.75 | 11.60 | 62.29 | -17.12 | 222.75 | -63.89 | 107.47 | 0.9015 | 560.5 | 117.5 | |
| 0.00 | 1.79 | 0.00 | 1.92 | -14.21 | 224.24 | -62.40 | 104.35 | 0.8886 | -280.0 | -319.4 | |
| 0.00 | 0.45 | 0.00 | 0.49 | -14.79 | 223.94 | -62.69 | 104.98 | 0.8912 | -441.0 | -380.4 | |
| 0.00 | 1.08 | 0.00 | 1.20 | -15.43 | 223.04 | -63.60 | 105.63 | 0.8984 | -451.0 | -366.7 | |
| 0.00 | 1.25 | 0.00 | 1.42 | -14.28 | 222.52 | -64.11 | 104.32 | 0.9016 | -608.0 | -513.6 | |
| 4.21 | 6.54 | 4.84 | 7.52 | -14.57 | 222.14 | -64.49 | 104.62 | 0.9045 | -398.7 | -316.6 | |
| 0.81 | 1.70 | 0.92 | 1.95 | -13.62 | 222.28 | -64.35 | 103.56 | 0.9030 | -419.0 | -328.3 | |
| 0.00 | 1.16 | 0.00 | 1.33 | -13.43 | 222.31 | -64.33 | 103.36 | 0.9028 | -473.0 | -371.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
