SDO HMI 2014-05-10 05:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 55.21 | 302.98 | 50.59 | 269.47 | -13.29 | 230.31 | -55.78 | 103.80 | 0.8264 | 285.0 | 154.5 | |
|
previous
or next observation for the same group /

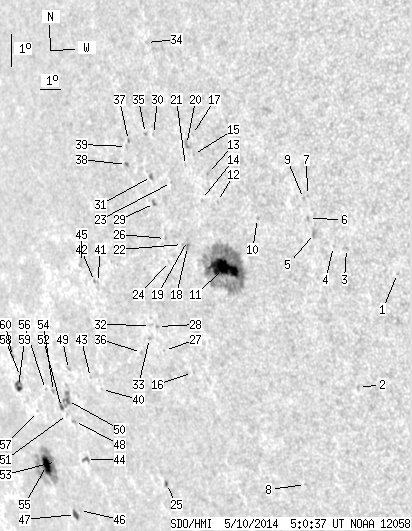

back to the solar disc SDO HMI 2014-05-10 05:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.16 | 0.00 | 0.80 | -12.03 | 243.04 | -43.05 | 104.12 | 0.6907 | 640.0 | 495.3 | |
| 0.00 | 1.25 | 0.00 | 0.90 | -15.46 | 240.50 | -45.58 | 108.34 | 0.7276 | 563.0 | 485.6 | |
| 0.00 | 1.97 | 0.00 | 1.39 | -11.18 | 241.00 | -45.08 | 102.56 | 0.7140 | 628.0 | 504.2 | |
| 0.00 | 0.63 | 0.00 | 0.45 | -11.10 | 240.45 | -45.64 | 102.36 | 0.7205 | 334.0 | 334.6 | |
| 0.00 | 3.85 | 0.00 | 2.78 | -10.67 | 239.69 | -46.40 | 101.66 | 0.7289 | 478.0 | 426.0 | |
| 0.00 | 1.70 | 0.00 | 1.23 | -10.20 | 239.51 | -46.57 | 100.99 | 0.7304 | 559.0 | 542.5 | |
| 0.00 | 0.81 | 0.00 | 0.58 | -9.50 | 239.59 | -46.49 | 100.04 | 0.7287 | 758.0 | 646.6 | |
| 0.00 | 0.99 | 0.00 | 0.76 | -18.36 | 237.05 | -49.04 | 111.31 | 0.7716 | 583.0 | 452.1 | |
| 0.00 | 0.90 | 0.00 | 0.65 | -9.59 | 239.40 | -46.68 | 100.14 | 0.7311 | 623.0 | 578.5 | |
| 0.00 | 0.99 | 0.00 | 0.74 | -10.10 | 237.18 | -48.90 | 100.60 | 0.7570 | 650.0 | 521.5 | |
| 31.10 | 150.55 | 24.50 | 118.50 | -11.56 | 235.22 | -50.87 | 102.27 | 0.7800 | 862.9 | 287.8 | |
| 0.00 | 0.72 | 0.00 | 0.56 | -9.51 | 235.39 | -50.69 | 99.66 | 0.7763 | 409.0 | 357.1 | |
| 0.00 | 1.16 | 0.00 | 0.92 | -8.64 | 235.08 | -51.00 | 98.51 | 0.7792 | 345.0 | 292.2 | |
| 0.00 | 0.90 | 0.00 | 0.71 | -9.41 | 234.63 | -51.45 | 99.47 | 0.7845 | 353.0 | 267.9 | |
| 0.00 | 0.72 | 0.00 | 0.57 | -8.03 | 234.50 | -51.58 | 97.70 | 0.7851 | 588.0 | 528.8 | |
| 0.00 | 0.36 | 0.00 | 0.30 | -14.66 | 232.69 | -53.39 | 105.84 | 0.8094 | 283.0 | 352.5 | |
| 0.00 | 0.63 | 0.00 | 0.50 | -7.42 | 234.56 | -51.52 | 96.93 | 0.7843 | 557.0 | 499.9 | |
| 0.00 | 2.42 | 0.00 | 1.97 | -10.81 | 233.60 | -52.48 | 101.16 | 0.7963 | 635.0 | 495.7 | |
| 0.00 | 0.90 | 0.00 | 0.73 | -10.63 | 233.65 | -52.43 | 100.93 | 0.7957 | 300.0 | 313.0 | |
| 0.00 | 4.57 | 0.00 | 3.66 | -7.71 | 234.21 | -51.87 | 97.29 | 0.7881 | 343.0 | 362.4 | |
| 0.00 | 0.81 | 0.00 | 0.65 | -8.35 | 234.05 | -52.04 | 98.08 | 0.7901 | 253.0 | 183.6 | |
| 0.00 | 1.08 | 0.00 | 0.88 | -10.74 | 233.37 | -52.72 | 101.04 | 0.7987 | 342.0 | 280.3 | |
| 0.00 | 0.99 | 0.00 | 0.81 | -8.83 | 233.24 | -52.84 | 98.65 | 0.7988 | 292.0 | 281.9 | |
| 0.00 | 0.81 | 0.00 | 0.67 | -11.22 | 232.57 | -53.52 | 101.58 | 0.8072 | 499.0 | 451.2 | |
| 0.81 | 2.06 | 0.73 | 1.87 | -18.02 | 229.85 | -56.23 | 109.44 | 0.8405 | 499.0 | 434.1 | |
| 0.00 | 0.99 | 0.00 | 0.82 | -10.52 | 232.54 | -53.54 | 100.70 | 0.8069 | -480.0 | -470.5 | |
| 0.00 | 0.27 | 0.00 | 0.23 | -13.92 | 231.46 | -54.63 | 104.77 | 0.8206 | 464.0 | 469.0 | |
| 0.00 | 1.25 | 0.00 | 1.08 | -13.17 | 231.34 | -54.75 | 103.85 | 0.8211 | 632.0 | 513.8 | |
| 0.00 | 2.42 | 0.00 | 2.03 | -9.43 | 232.23 | -53.85 | 99.33 | 0.8094 | 464.0 | 375.2 | |
| 0.00 | 0.81 | 0.00 | 0.67 | -7.34 | 232.61 | -53.48 | 96.75 | 0.8048 | -639.0 | -586.6 | |
| 0.00 | 2.33 | 0.00 | 1.95 | -8.60 | 232.26 | -53.82 | 98.31 | 0.8088 | -271.0 | -88.2 | |
| 0.00 | 1.70 | 0.00 | 1.48 | -13.13 | 230.97 | -55.11 | 103.75 | 0.8246 | 402.0 | 360.3 | |
| 0.00 | 1.43 | 0.00 | 1.26 | -13.52 | 230.78 | -55.30 | 104.20 | 0.8267 | 443.0 | 271.6 | |
| 0.00 | 1.43 | 0.00 | 1.19 | -4.54 | 232.65 | -53.44 | 93.26 | 0.8042 | 470.0 | 381.2 | |
| 0.00 | 1.25 | 0.00 | 1.05 | -7.29 | 232.20 | -53.88 | 96.68 | 0.8090 | -609.0 | -442.7 | |
| 0.00 | 1.08 | 0.00 | 0.96 | -13.93 | 230.19 | -55.89 | 104.63 | 0.8327 | 437.0 | 376.3 | |
| 0.00 | 1.16 | 0.00 | 1.00 | -7.46 | 231.27 | -54.81 | 96.86 | 0.8183 | -664.0 | -545.0 | |
| 0.54 | 1.61 | 0.46 | 1.39 | -8.18 | 231.02 | -55.06 | 97.74 | 0.8210 | -510.8 | -423.8 | |
| 0.00 | 1.43 | 0.00 | 1.23 | -7.64 | 231.13 | -54.95 | 97.07 | 0.8198 | -499.0 | -369.9 | |
| 0.00 | 0.27 | 0.00 | 0.26 | -14.95 | 227.44 | -58.64 | 105.53 | 0.8583 | 186.0 | 147.0 | |
| 0.00 | 0.27 | 0.00 | 0.25 | -11.68 | 228.47 | -57.62 | 101.79 | 0.8469 | -555.0 | -501.3 | |
| 0.00 | 0.99 | 0.00 | 0.92 | -11.64 | 228.30 | -57.78 | 101.74 | 0.8484 | -467.0 | -402.5 | |
| 0.00 | 0.72 | 0.00 | 0.70 | -14.55 | 226.95 | -59.14 | 105.02 | 0.8623 | 449.0 | 372.0 | |
| 1.43 | 3.41 | 1.47 | 3.48 | -17.05 | 225.46 | -60.62 | 107.73 | 0.8766 | 498.3 | 388.4 | |
| 0.00 | 3.76 | 0.00 | 3.55 | -11.03 | 227.74 | -58.34 | 100.98 | 0.8531 | -372.0 | -340.9 | |
| 0.00 | 1.34 | 0.00 | 1.44 | -18.60 | 224.07 | -62.01 | 109.32 | 0.8888 | -168.0 | -188.9 | |
| 3.14 | 4.57 | 3.40 | 4.95 | -18.71 | 223.72 | -62.36 | 109.40 | 0.8915 | -536.0 | -355.4 | |
| 0.00 | 1.61 | 0.00 | 1.65 | -15.85 | 225.32 | -60.77 | 106.35 | 0.8768 | -363.0 | -304.7 | |
| 0.00 | 1.16 | 0.00 | 1.17 | -14.24 | 225.71 | -60.38 | 104.55 | 0.8725 | 466.0 | 309.8 | |
| 2.51 | 12.99 | 2.57 | 13.37 | -15.19 | 225.20 | -60.89 | 105.59 | 0.8773 | -679.8 | -489.8 | |
| 0.00 | 1.16 | 0.00 | 1.20 | -15.61 | 224.98 | -61.10 | 106.05 | 0.8793 | -452.0 | -365.0 | |
| 1.34 | -50.00 | 1.40 | -50.00 | -15.38 | 224.70 | -61.38 | 105.76 | 0.8813 | -362.9 | 999999 | |
| 0.00 | 0.99 | 0.00 | 1.07 | -17.02 | 223.46 | -62.62 | 107.49 | 0.8921 | 158.0 | 136.8 | |
| 0.00 | 1.61 | 0.00 | 1.69 | -14.87 | 224.43 | -61.65 | 105.16 | 0.8832 | -526.0 | -441.5 | |
| 8.87 | 53.68 | 9.89 | 59.97 | -17.11 | 222.70 | -63.38 | 107.51 | 0.8978 | 604.9 | 127.2 | |
| 0.00 | 0.45 | 0.00 | 0.48 | -14.78 | 223.94 | -62.14 | 105.02 | 0.8870 | -389.0 | -372.2 | |
| 0.00 | 0.27 | 0.00 | 0.29 | -15.43 | 223.05 | -63.03 | 105.67 | 0.8942 | -419.0 | -330.7 | |
| 0.00 | 1.16 | 0.00 | 1.30 | -14.30 | 222.45 | -63.63 | 104.37 | 0.8981 | -594.0 | -504.9 | |
| 4.84 | 6.99 | 5.46 | 7.88 | -14.60 | 222.15 | -63.93 | 104.68 | 0.9004 | -417.7 | -321.0 | |
| 0.63 | 3.49 | 0.71 | 3.93 | -13.67 | 222.21 | -63.87 | 103.65 | 0.8996 | -391.3 | -382.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
