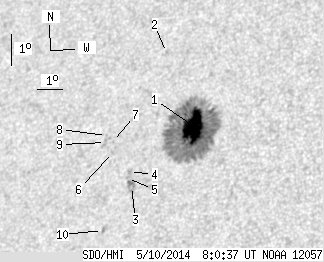

SDO HMI 2014-05-10 08:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.82 | 276.72 | 27.91 | 176.63 | 14.75 | 249.41 | -35.03 | 61.73 | 0.6325 | -643.4 | -228.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-05-10 08:00:37 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.82 | 255.85 | 27.91 | 162.96 | 14.83 | 249.60 | -34.84 | 61.50 | 0.6306 | -1058.1 | -310.2 | |
| 0.00 | 1.97 | 0.00 | 1.30 | 17.25 | 248.05 | -36.39 | 59.10 | 0.6625 | 699.0 | 570.0 | |
| 0.00 | 7.71 | 0.00 | 4.99 | 13.01 | 247.54 | -36.90 | 65.37 | 0.6459 | 521.0 | 609.0 | |
| 0.00 | 1.88 | 0.00 | 1.22 | 13.49 | 247.37 | -37.07 | 64.77 | 0.6502 | 716.0 | 599.4 | |
| 0.00 | 1.25 | 0.00 | 0.82 | 13.27 | 247.33 | -37.11 | 65.11 | 0.6496 | 486.0 | 454.9 | |
| 0.00 | 1.25 | 0.00 | 0.83 | 14.11 | 246.58 | -37.86 | 64.32 | 0.6627 | 752.0 | 566.7 | |
| 0.00 | 0.54 | 0.00 | 0.36 | 14.47 | 246.52 | -37.92 | 63.86 | 0.6652 | 621.0 | 442.7 | |
| 0.00 | 0.72 | 0.00 | 0.48 | 14.67 | 246.24 | -38.20 | 63.74 | 0.6695 | 708.0 | 614.8 | |
| 0.00 | 4.21 | 0.00 | 2.80 | 14.44 | 246.24 | -38.20 | 64.04 | 0.6683 | 563.0 | 556.7 | |
| 0.00 | 1.34 | 0.00 | 0.87 | 11.66 | 246.63 | -37.81 | 67.81 | 0.6508 | 718.0 | 566.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
